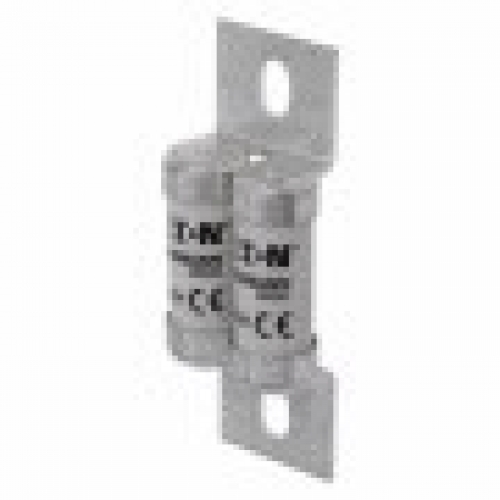

| Fuse-link, high speed, 110 A, AC 690 V, DC 500 V, BS88, 37 x 94 mm, aR, BS | |
| Part no. | 110EET |
| Product name | Eaton Bussmann series high speed british standard fuse |
| Part no. | 110EET |
| EAN | 5027590429139 |
| Product Length/Depth | 94 millimetre |
| Product height | 36 millimetre |
| Product width | 20 millimetre |
| Product weight | 91.6 gram |
| Compliances | CE Marked RoHS Compliant |
| Certifications | Designed and tested to BS88 part 4 IEC 60269-4 IEC Rated UL Recognized |
| Product Tradename | None |
| Product Type | High speed british standard fuse |
| Amperage Rating | 110 A |
| Voltage rating | 690 V (IEC), 700 V (UL) |
| Rated voltage AC | 690 V |
| Rated voltage DC | 500 V |
| Interrupt rating | 200 kA RMS Sym, 50 kA at 500 Vdc |
| Class | Class aR |
| Clearing (I2T) | 4000 at 415 V, 6500 at 660 V |
