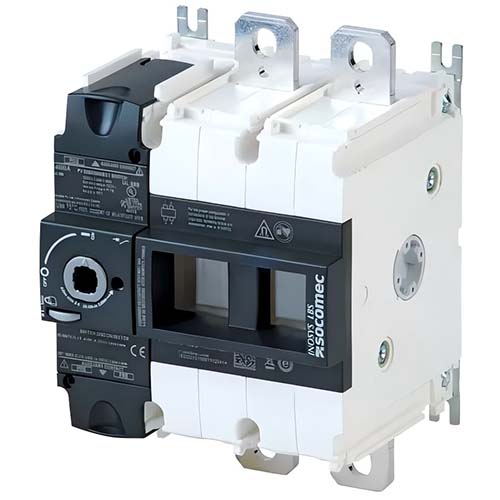

Socomec INOSYS 1500VDC Load Break Switch
| Rating(A) | Framesize | No.of poles per circuit | Enclosure(0) | External controls | Contact with | Bridging bar 2 |
| 160A | F2 | 2P (1 P+,1P-) | 86P02017 | Shaft 320mm 14001032 Handletype S2 Black IP 65 742F 2111 | NO/NC 84990001 | |
| 86P11017 | ||||||
| 3P (2 P+,1P-) | 86P03016 | 84090016 | ||||
| 250A | F2 | 2P (1P+,1P-) | 86P02026 | |||
| 86P11026 | ||||||
| 3P (2P+,1P-) | 86P03025 | 84090016 | ||||
| 315A | F2 | 2P (1P+,1P-) | 86P02032 | |||
| 86P11032 | ||||||
| 3P (2P+,1P-) | 86P03031 | 84090016 | ||||
| 400A | F3 | 2P (1P+,1P-) | 86P02041 | Shaft 320mm 14001032 Handle type S2L Black IP 65 14AF 2111 | ||
| 86P11041 | ||||||
| 630A | F3 | 2P (1P+,1P-) | 86P02064 | |||
| 86P11064 |

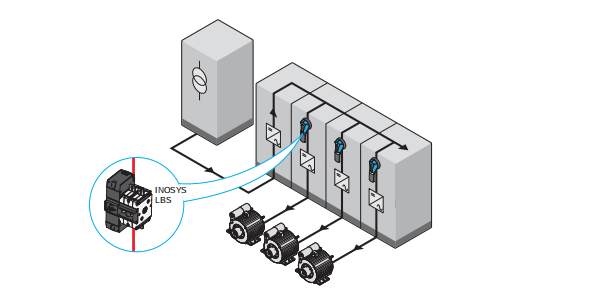

DC process insulation
