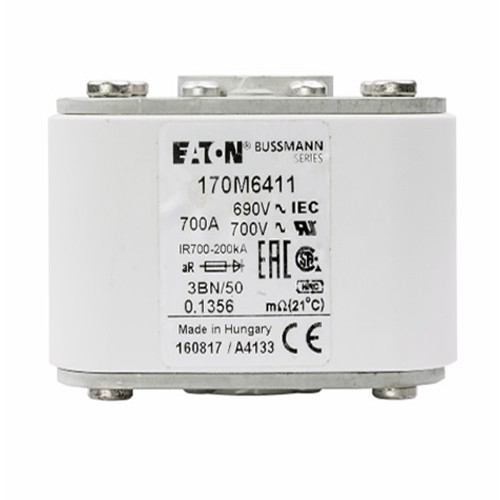

Bussmann/Eaton HRC fuse 630A 690V 170M6411
ETIM Class:
Low Voltage HRC fuse
ETIM Group:
Circuit breakers and fuses
Insulated metal gripping lugs (IMGL):
No
Rated current:
700A
Rated switching capacity:
200kA
Rated voltage:
690V
Type of fuse status indicator:
Top fuse status indicator
Utilization category:
aR (accompanied semiconductor protection)
Voltage type:
AC
Manufacturer:
Bussmann
Pricing Unit:
Each
Order Multiple:
3
Weight:
0.800 kg (each)
Tariff code:
85361090
Generic code:
BQJ
GTIN/UPC/EAN:
5027590461979
| Dimensions Flush End Contact: Type -B/-, -BKN/-, -G/-, -GKN/- | ||||||||||||||||||||||
| Size | A | B | D | E | F | F§ | G | H | ||||||||||||||
| 1* | 50 | 51 | 59 | 45 | M8 | fiΩ¡§∑ - 18 UNC-2B | 5 | ø17 | ||||||||||||||
| 1 | 50 | 51 | 69 | 53 | M8 | fiΩ¡§∑ - 18 UNC-2B | 8 | ø20 | ||||||||||||||
| 2 | 50 | 51 | 77 | 61 | M10 | ‹Ω•∑ - 16 UNC-2B | 10 | ø24 | ||||||||||||||
| 3 51 53 92 76 M12 ⁄Ω™∑ - 13 UNC-2B 10 ø30 §Valid for fuses type -G/- & -GKN/-NB: B = 65 for Size 2, 1100-1250A Carton Quantity = 4 Carton Weight = 2.40 kg Size 3, 1600-2000A Carton Quantity = 2 Carton Weight = 1.82 kg Dimension in mm. 1mm = 0.0394∑ 1∑ = 25.4mm | ||||||||||||||||||||||
