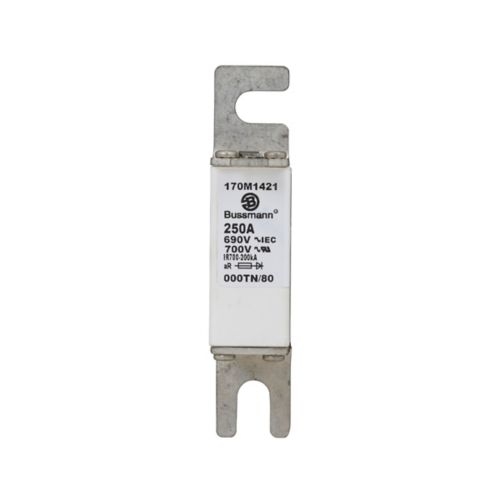

170M1421Bussmann High Speed Fuse for Inverter
| Product Name | Eaton Bussmann series high speed square body fuse |
| Catolog Number | 170M1421 |
| Rated Amperage | 250A |
| Rated Voltage | 690 V (IEC), 700 V (UL) |
| Datasheet | |
| Product Height | 46mm |
| Product Length | 105mm |
| Product Width | 300mm |
| Product Weight | 230g |
| Class | aR |
| Voltage Type | AC |
| Fuse Size | 000 |
| Breaking Capacity | 200ka |
| 3D Model; CAD | Contact us |
| Compliacne | CE;Rohs |
Bussmann Fuse, Semiconductor Fuse, Time Delay Fuse, High Speed Fuse, Class J Fuse, Class T Fuse, Class cc fuse, Class RK1 Fuse, Class RK5 Fuse, Class L Fuse, DC Contactor, Disconnect Switch, Car Fuse, Current Limiting Fuse, HV Fuse, Bussmann Fuse Holder, AC Fuse, DC Fuse
You can ask any Bussmann fuse and fuse cross reference(Littelfuse, Mersen, etc).
