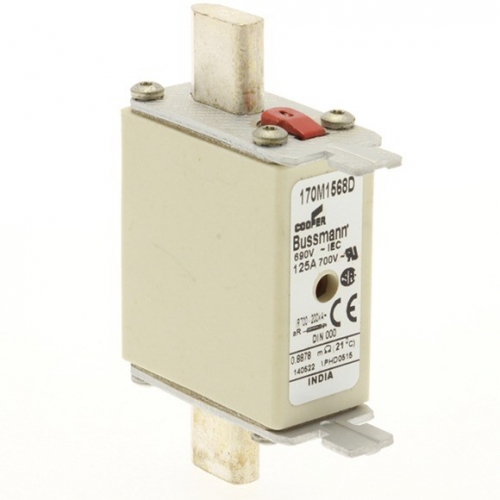

170M1568-High Speed Fuse-Bussmann
| PRODUCT NAME | Bussmann series high speed square body fuse |
| CATALOG NUMBER | 170M1568 |
| PRODUCT LENGTH/DEPTH | 79 mm |
| PRODUCT HEIGHT | 51 mm |
| DATASHEET | |
| PRODUCT WIDTH | 21 mm |
| PRODUCT WEIGHT | 136.6 g |
| WARRANTY | Not Applicable |
| COMPLIANCES | CE Marked;RoHS Compliant |
| CERTIFICATIONS | UL Recognized;IEC Rated |
170M — Square Body size 000 to 3, DIN 43620,dual indicator fuses 690 Vac (IEC), 700 Vac (UL), 10 to 1600 A
Ratings
• Volts
• 690 Vac (IEC)
• 700 Vac (UL)
• Amps 10-1600 A
• IR 200 kA RMS Sym. Operating class
• gR (size 000, 10-63 A)
• aR (others) Agency information
• Designed and tested to IEC 60269 Part 4
• UL Recognized, JFHR2, E125085
