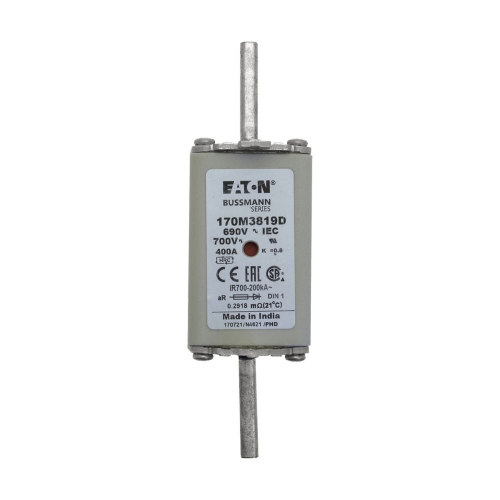

170M3819D Bussmann High Speed Square Body Fuse
| Product name | Eaton Bussmann series high speed square body fuse |
| Part no. | 170M3819D |
| Voltage Rating | 690VAC |
| Current Rating | 400A |
| Datasheet | |
| Product Length | 135mm |
| Product height | 64mm |
| Product width | 40mm |
| Product weight | 422.5g |
| Fuse Type | aR (accompanied semiconductor protection) |
| Connection | Blade end x blade end |
| Fuse Size | 1 |
| CAD,3D Stp | Contact us |
170M3819D Fuse Dimensions -mm
What does the "D" in the model number of Bussmann 170M series fuses mean?
Regarding the model number structure, fuses labeled as "170MxxxxD" are dual-indicator fuses.
