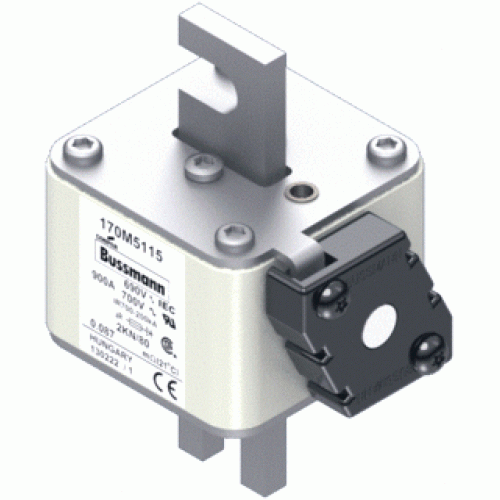

Part number: 170M5115
| Parameter | Value | Unit |
| Model | 170M5115 | - |
| Rated Current | 900 | A |
| Rated Voltage | AC 690 (IEC), AC 700 (UL) | V |
| Breaking Capacity | 200 | kA |
| Dimensions (Body) | 61 × 77 × 108 | mm |
| Packaging Size | 286 × 165 × 66 | mm |
| Weight | 594 | g |
| Power Loss (Watts) | 110 | W |
| Type | DIN 2, Class aR | - |
| Connection | Blade end × blade end | - |
| Certifications | CE, RoHS, UL, IEC | - |
| Fuse Indicator | Type K (Center status) | - |
| Utilization Category | aR | - |
| Interrupt Rating | 200 kAIC | - |
| Application | Semiconductor, DC bus, Drives | - |
