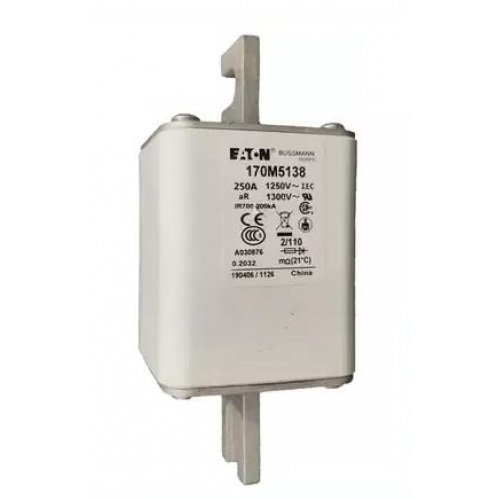

170M5138 Bussmann Fuse | 250A 1250V 2/110 AR CU
| General specifications | |
| Product Name | Eaton Bussmann series high speed square body fuse |
| Catalog Number | 170M5138 |
| Model Code | FUSE 250A 1250V 2/110 AR CU |
| Product Length/Depth | 284 mm |
| Product Height | 67 mm |
| Product Width | 175 mm |
| Product Weight | 634 g |
| Compliances | CE Marked |
| RoHS Compliant | |
| Certifications | IEC Rated |
| UL Recognized | |
| Global Catalog | 170M5138 |
| Product specifications | |
| Amperage Rating | 250 A |
| Breaking capacity | 100 kA |
| Fuse indicator | Top fuse status indicator |
| Utilization category | aR (accompanied semiconductor protection) |
| Voltage type | AC |
| Fuse size | 2 |
| Rated voltage AC | 1250 V |
| Center-to-center distance of connections | 108 mm |
| Current type | AC |
| Mounting dimension | M10 |
| Class | Class aR |
| Clearing (I2T) | 38500 at 1000 V, 51500 at 1250 V |
| Watt losses | 65 W |
| Fuse shape | Square body, slotted center bolted tags |
| Pre arc (I2T) | 6500 |
| Interrupt rating | 100 kAIC |
| Construction size | 2 |
| Packaging type | Standard |
| Voltage rating | 1250 V (IEC), 1300 V (UL) |
| Type | Fuse |
| Application | Semiconductor, DC Common bus, DC drives, power converters/rectifiers |
| Fuse type | DIN 43653 |
| /110 Visual indicator | |
| Bolted tag |
