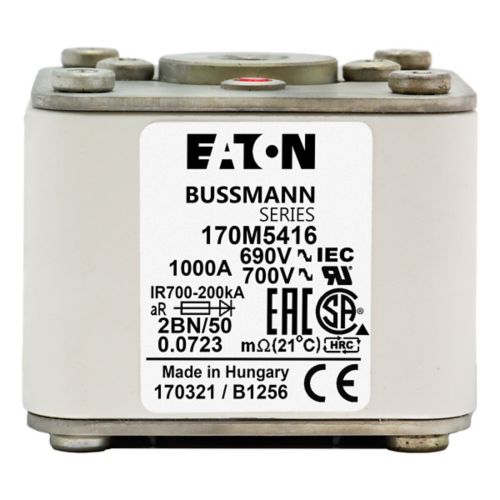

170m5416 Bussmann High Speed AC Fuse
| Product Name | Eaton Bussmann series high speed square body fuse |
| Catolog Number | 170M5416 |
| Rated Amperage | 1000A |
| Rated Voltage | 690 V (IEC), 700 V (UL) |
| Datasheet | |
| Product Height | 78mm |
| Product Length | 155mm |
| Product Width | 123mm |
| Product Weight | 530g |
| Class | aR |
| Voltage Type | AC |
| Fuse Size | 2 |
| Breaking Capacity | 200ka |
| 3D Model; CAD | Contact us |
| Compliacne | CE;Rohs |
