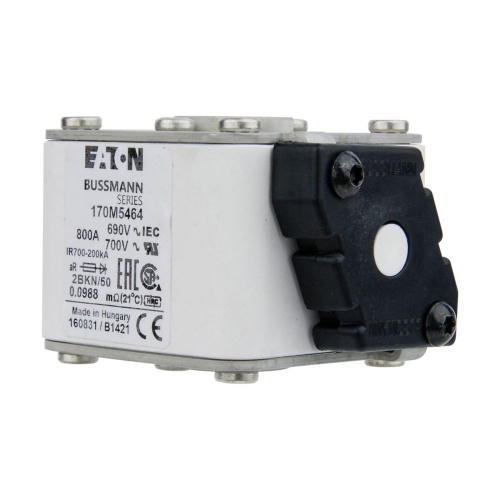

170M5464 Eaton FUSE 800A 690V Bussmann
| General specifications | |
| Product Name | Eaton Bussmann series high speed square body fuse |
| Catalog Number | 170M5464 |
| Model Code | FUSE 800A 690V 2BKN/50 AR UC |
| Product Length/Depth | 77 mm |
| Product Height | 59 mm |
| Product Width | 51 mm |
| Product Weight | 564 g |
| Compliances | CE Marked |
| RoHS Compliant | |
| Certifications | IEC Rated |
| UL Recognized | |
| Electrical data | |
| Amperage Rating | 800 A |
| Voltage rating | 690 V (IEC), 700 V (UL) |
| Voltage type | AC |
| Clearing (I2T) | 575000 at 660 V |
| Pre arc (I2T) | 86000 |
| Watt losses | 105 W |
| Breaking capacity | 200 kA |
| Class | Class aR |
| Product specification | |
| Fuse size | 2 |
| Fitted with: | Type K Indicator for micro |
