170m6010 630A High-Speed Fuse (AC 690V, DIN 3) - Industrial Circuit Protection
Browse：
- Specification
- Datasheet download

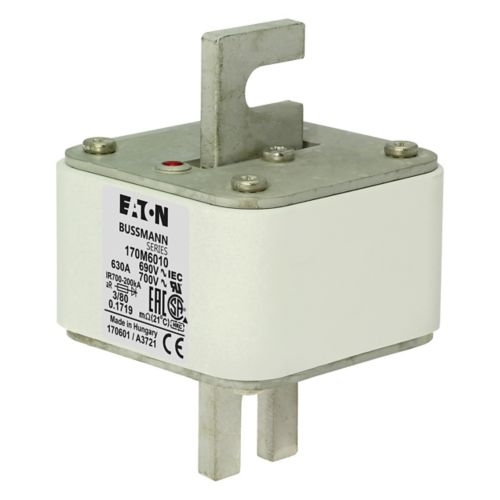

170M6010 Bussmann High Speed Fuse
| Product Name | Eaton Bussmann series high speed square body fuse |
| Catolog Number | 170M6010 |
| Rated Amperage | 630A |
| Rated Voltage | 690 V (IEC), 700 V (UL) |
| Datasheet | |
| Product Height | 168mm |
| Product Length | 76mm |
| Product Width | 95mm |
| Product Weight | 900g |
| Class | aR |
| Voltage Type | AC |
| Fuse Size | 3 |
| Breaking Capacity | 200ka |
| 3D Model; CAD | Contact us |
| Compliacne | CE;Rohs |
