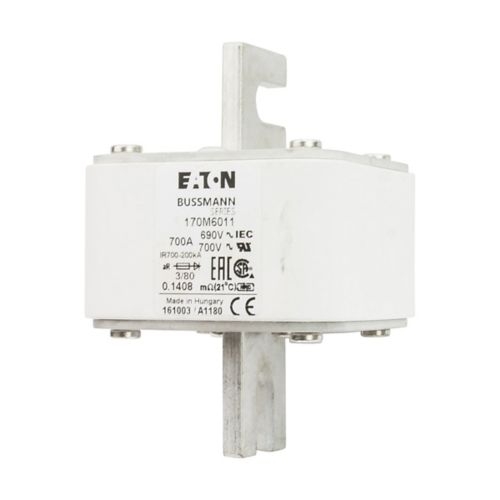

170m6011 700A High-Speed DIN 3 Fuse-Link (AC 690V) - Class aR

Manufacturer：Bussmann

Description :Heavy-current 700A fuse-link optimized for 690V AC systems. Meets IEC/DIN 3 standards with a 76x76x109mm footprint and single indicator for fault detection

Stock quantity(PCS) :0

Lead time ( Weeks ) :8

Categories：Bussmann, high speed fuse, 170m6011, 700A Fuse, 600V Fuse, Fast Acting Fuse

Browse：

Chat Now

Inquiry now

Specification
Datasheet download

170M6011 Bussmann High Speed Fuse

Product Name	Eaton Bussmann series high speed square body fuse
Catolog Number	170M6011
Rated Amperage	700A
Rated Voltage	690 V (IEC), 700 V (UL)
Datasheet	PDF
Product Height	168mm
Product Length	76mm
Product Width	95mm
Product Weight	900g
Class	aR
Voltage Type	AC
Fuse Size	3
Breaking Capacity	200ka
3D Model; CAD	Contact us
Compliacne	CE;Rohs

Bussmann Fuse, Semiconductor Fuse, Time Delay Fuse, High Speed Fuse, Class J Fuse, Class T Fuse, Class cc fuse, Class RK1 Fuse, Class RK5 Fuse, Class L Fuse, DC Contactor, Disconnect Switch, Car Fuse, Current Limiting Fuse, HV Fuse, Bussmann Fuse Holder, AC Fuse, DC Fuse

You can ask any Bussmann fuse and fuse cross reference(Littelfuse, Mersen, etc).
