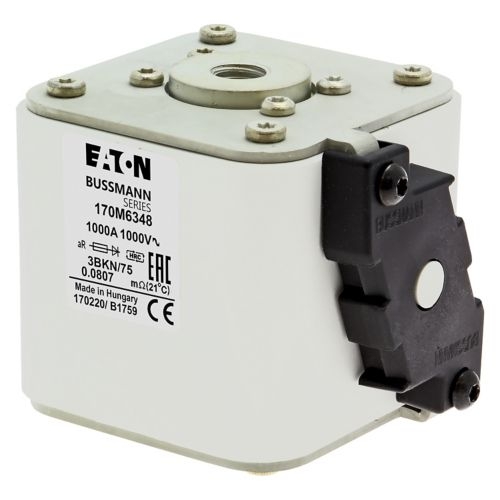

Bussmann Fuse-link, high speed, 1000 A, AC 1000 V, size 3, 76 x 92 x 76 mm, aR, IEC, UL, type K indicator
| General specifications | ||
| Product Name | Eaton Bussmann series high speed square body fuse | |
| Catalog Number | 170M6348 | |
| UPC | 051712263948 | |
| EAN | 5027590461887 | |
| Product Length/Depth | 168 mm | |
| Product Height | 76 mm | |
| Product Width | 95 mm | |
| Product Weight | 1156 g | |
| Warranty | Not Applicable | |
| Compliances | CE Marked RoHS Compliant | |
| Certifications | UL Recognized IEC Rated | |
| Product specifications | ||
| Type | Fuse | |
| Application | Semiconductor, DC Common bus, DC drives, power converters/rectifiers | |
| Amperage Rating | 1000 A | |
| Breaking capacity | 125 kA | |
| Fuse indicator | Centre fuse status indicator | |
| Insulated metal gripping lugs (IMGL) | No | |
| Utilization category | aR (accompanied semiconductor protection) | |
| Voltage type | AC | |
| Fuse size | 3 | |
| Rated voltage AC | 1000 V | |
| Center-to-center distance of connections | 75.4 mm |
