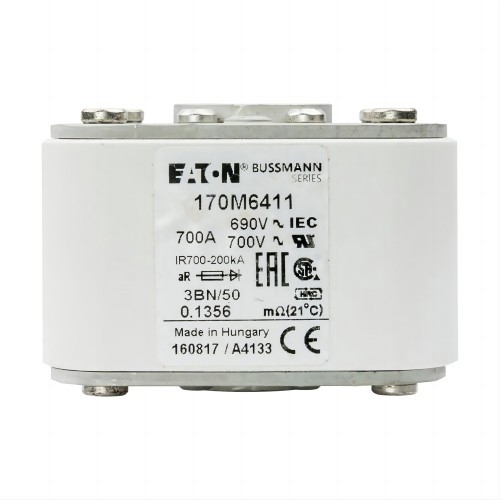

BUSSMANN SERIES HIGH SPEED SQUARE BODY FUSES:170M6411
GENERAL SPECIFICATIONS
| GENERAL SPECIFICATIONS | |
| PRODUCT NAME | Eaton Bussmann series high speed square body fuse |
| CATALOG NUMBER | 170M6411 |
| UPC | 051712793018 |
| PRODUCT LENGTH/DEPTH | 53mm |
| PRODUCT HEIGHT | 76mm |
| SHORT-CIRCUIT RATING | 200 kA |
| NUMBER OF POLES | Two-pole |
| PRODUCT WEIGHT | 825 g |
| COMPLIANCES | CE Marked RoHS Compliant |
| CERTIFICATIONS | IEC Rated UL Recognized |
| AMPERAGE RATING | 700 A |
| VOLTAGE RATING | 690 V (IEC), 700 V (UL) |
