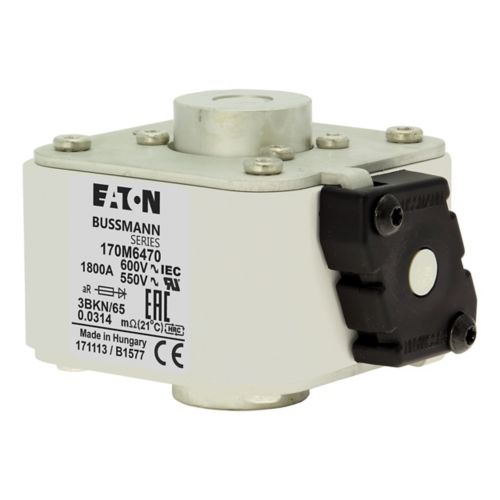

The Eaton Bussmann 170M6470 is a high-speed, square body fuse-link designed primarily for semiconductor protection. It is a Size 3 fuse with an amperage rating of 1800 A and a voltage rating of 600 VAC.
Key Technical Specifications
Amperage Rating: 1800 A.
Voltage Rating: 600 VAC.
Interrupting Rating: 200 kA.
Utilization Category: aR (accompanied semiconductor protection).
Fuse Size: Size 3.
Mounting: Flush end connections (BKN type).
Indicator: Center fuse status indicator, fitted with a Type K indicator for microswitches.
Watt Losses: 165 W.
Total Clearing : 210,000 at 660 V.
