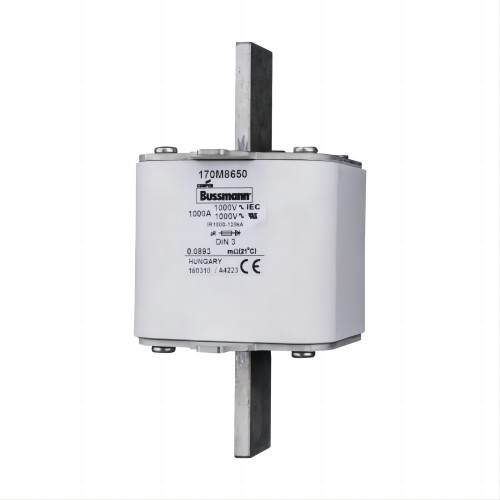

170M8650_high speed fuse_Bussmann
| Product name | Eaton Bussmann series high speed square body fuse |
| Part no. | FUSE 1000A 1000V DIN 3 AR UR |
| EAN | 5027590465663 |
| Product Length/Depth | 168 millimetre |
| Product height | 76 millimetre |
| Product width | 95 millimetre |
| Product weight | 1259 gram |
| Compliances | Contact factory RoHS Compliant |
| Product Tradename | None |
| Product Type | High speed square body fuse |
| Product Sub Type | None |
| Amperage Rating | 1000 A |
| Voltage rating | 1000 V |
| Interrupt rating | 100 kAIC |
| Class | Class aR |
| Application | Protection of power rectifiers |
| Fuse type | DIN 43620 Bladed |
| Fuse indicator | Top fuse status indicator |
| Fuse size | 3 |
