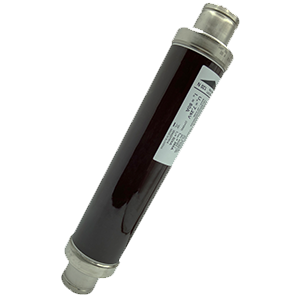

Eaton’s Bussmann series 17.5 kV Medium voltage fuse links
Catalogue symbol:
• 17.5AILSJ(amp) • 17.5TDLSJ(amp) • 17.5TFLSJ(amp)
• 17.5TDMEJ(amp) • 17.5THMEJ(amp) • 17.5TKMEJ(amp)
Technical data:
• Volts: 17.5 kV
• Amps: 6.3 to 125 A
• Breaking capacity: 35.5 to 50 kA
• Class of operation: Back-up as IEC 60282-1 (2005)
• Suitable for outdoor and indoor use
• RoHS compliant
Standards/Approvals:
• DIN 43625
• VDE 0670 part 4 and 402
• IEC 60282-1 (2005)
Packaging: MOQ 3
