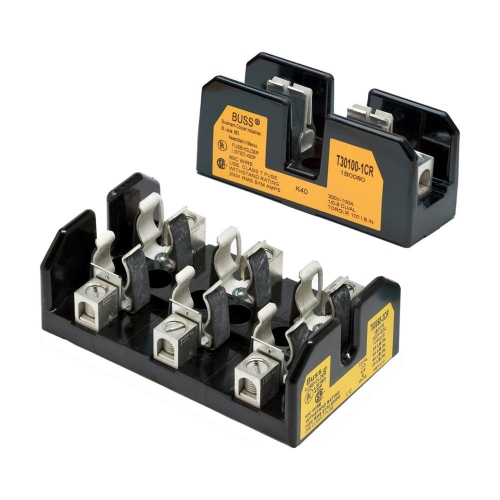

1B0089 Bussmann Class T Modular Fuse Block
| Product Name | Eaton Bussmann series Class T modular fuse block |
| Catolog Number | 1B0089 |
| Rated Amperage | 101-200A |
| Rated Voltage | 600 Vac, 600 Vdc |
| Datasheet | |
| Product Length | 152mm |
| Product Height | 57mm |
| Product Width | 65mm |
| Product Weight | 200g |
| Number of Poles | Three-pole |
| Wire Size | 250 kcmil Cu/Al #6-250 kcmil Cu/Al |
| Package Type | Standard |
| Short Circuit Rating | 200 kA |
| Certification | TUV, UL |
