Littelfuse cross reference Bussmann
- Specification
- Datasheet download
Descriptions
FUSE, CARTRIDGE, 20A, 6.3 X 32MM, TIME DELAY; Blow Characteristic:Slow Blow; Fuse Current:20A; Voltage Rating VAC:250V; Fuse Size Metric:6.3mm x 32mm; Fuse Size Imperial:1/4" x 1-1/4"; Product Range:Slo-Blo 326 Series RoHS Compliant: Yes
326 Series Slo-Blo 250 V 20 A Ø 6.35 x 31.75 mm Ceramic Cartridge Fuse
Fuse Cylinder Slow Blow 20A Sz 3AG Supplemental Dims 0.25x1.25" Ceramic 250VAC
20A 250V AC 60V DC Fuse Cartridge, Ceramic Holder 3AB, 3AG, 1/4" x 1-1/4"
FUSE 250V UL TD 3AB 20A
| Product | Ceramic Fuse |
| Termination Style | Clip |
| Minimum Operating Temperature | - 55 C |
| Diameter | 6.35 mm |
| Interrupt Rating | 500 A at 60 VDC |
| Resistance | 3.35 mOhms |
| Voltage Rating AC | 250 VAC |
| Maximum Operating Temperature | + 125 C |
| Product Category | Cartridge Fuses |
| Indicator Style | Without Indicator |
| Mounting Style | Holder / Clip |
| Product Type | Axial Lead and Cartridge Fuse |
| Voltage Rating DC | 60 VDC |
| Body Style | Cylindrical |
| Current Rating | 20 A |
| Fuse Size / Group | 3AB (6.3 mm x 32 mm) |
| Fuse Type | Time Delay / Slow Blow |
| Length | 31.75 mm |
Related Product Recommendation

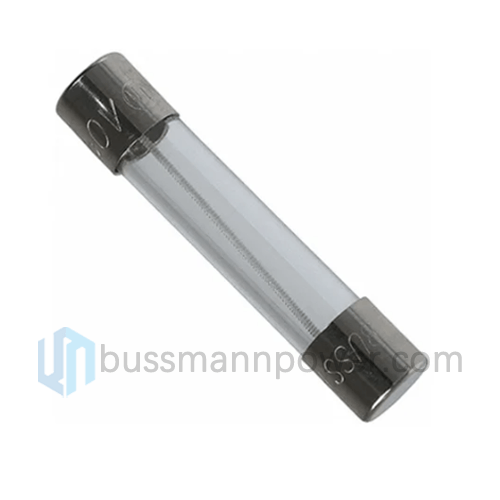

Bussmann MDA fuse
