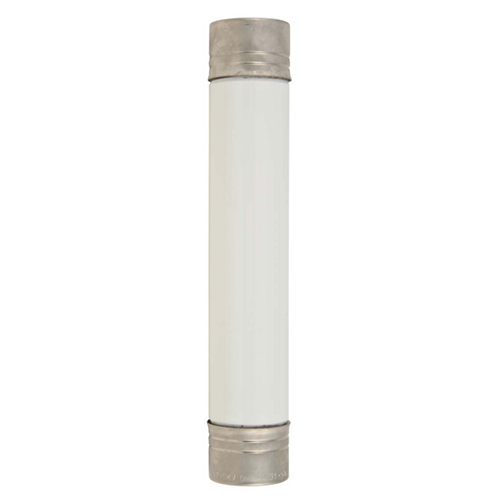

Bussmann 3.6OEFMA100
British Standard IEC Fuses for Use in Oil Filled Distribution Switchgear, fuse rating: 3.6KV, 100amp;You can ask all Bussmann current limiting fuse and medium voltage fuse to ABPower.
Fuse cross reference:
Cooper Xi'AN fusegear, WDFHO-3.6kV/100A(-C);
fuse rating:
3,600VAC, 100amp.
Mating with:
Fuse holder: 1A1837.
Fuse Ratings*
• Volts 2.4 kV to 38 kV
• Amps 0.25 to 15 A
• Interrupting ratings 25 to 80 kA RMS Sym.
