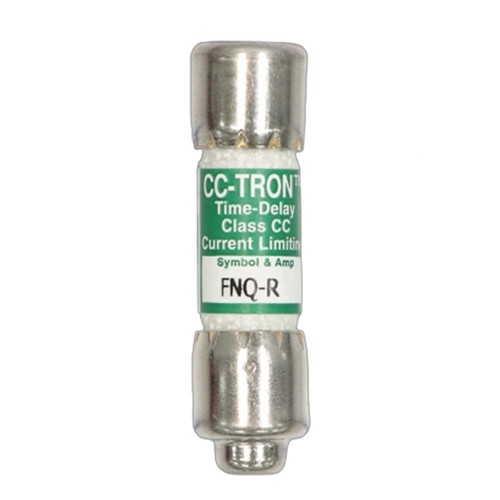

FNQ-R-2 Bussmann Class CC Limitron™ time-delay fuse|ABPpower

Bussmann, a brand with history of 106 years professionally on fuse.It's with more than 130,000 kinds of different fuses in multiple applications.

FNQ-R Class CC Limitron™ time-delay,  rejection-type fuse

Time-delay, branch circuit, rejection-type fuse. For superior electrical protection,

Ratings

 • Volts

 • 600 Vac (or less)

 • 300 Vdc (15-20 A)

• 32 Vdc (self certified)

 • Amps 1/4-30 A

• IR

• 200 kA RMS Sym

. • 20 kA DC (15 and 20 A only)

Agency information

 • UL Listed, Std 248-4, Class CC, Guide JDDZ, File E4273, CSA Certified, Class 1422-01, File 53787, RoHS compliant, CE

Features

 • Class CC rejection feature, with appropriate fuse block, prevents inserting lesser-rated supplementary fuses

 • Time-delay compatible with inrush characteristic of small control transformers

 • Current limitation at Class CC levels provides maximum component short-circuit current rating protection

 • 200 kA interrupting rating provides high ratings for control circuit locations

Typical applications

 • Line protection, small control transformers

 • Industrial controls and panels

 • Isolated, in-line fuse holders

Fuse Cross Reference

Family fuses:

Due to limited space, pls contact us if you need Bussmann more fuse datasheet.

Packing：

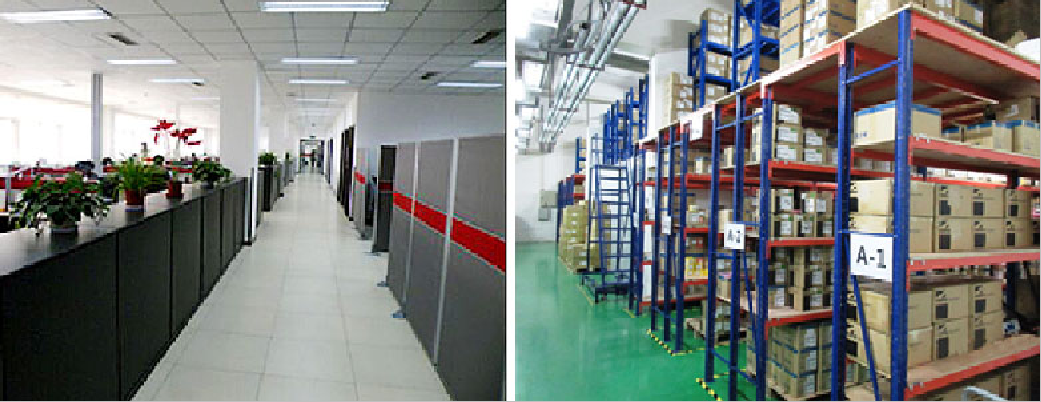

About  us
