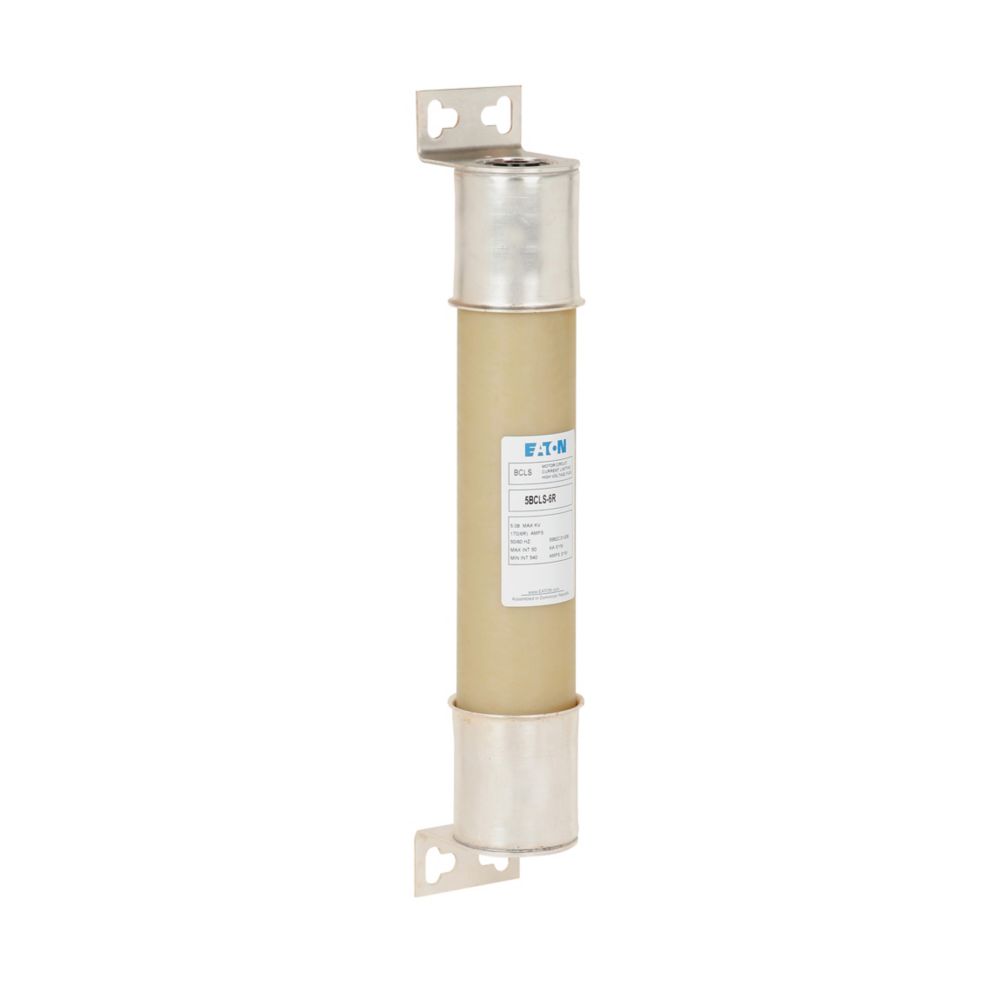

5BCLS-6R Bussmann 4.8KV MV Fuse
| Product Name | Eaton Bussmann series BCLS fuse |
| Catolog Number | 5BCLS-6R |
| Rated Amperage | 170A |
| Rated Voltage | 4.8KV |
| Datasheet | |
| Product Length | 15.9 in |
| Product Height | 3 in |
| Product Width | 3 in |
| Product Weight | 5kg |
| Class | Class R |
| Special Feature | Single barrel, 6R designation |
| Mounting Method | Bolt-in |
| Package Type | Standard |
| Breaking Capacity | 50ka |
| Certification | IEEE Std. C37.41 Not Applicable |
