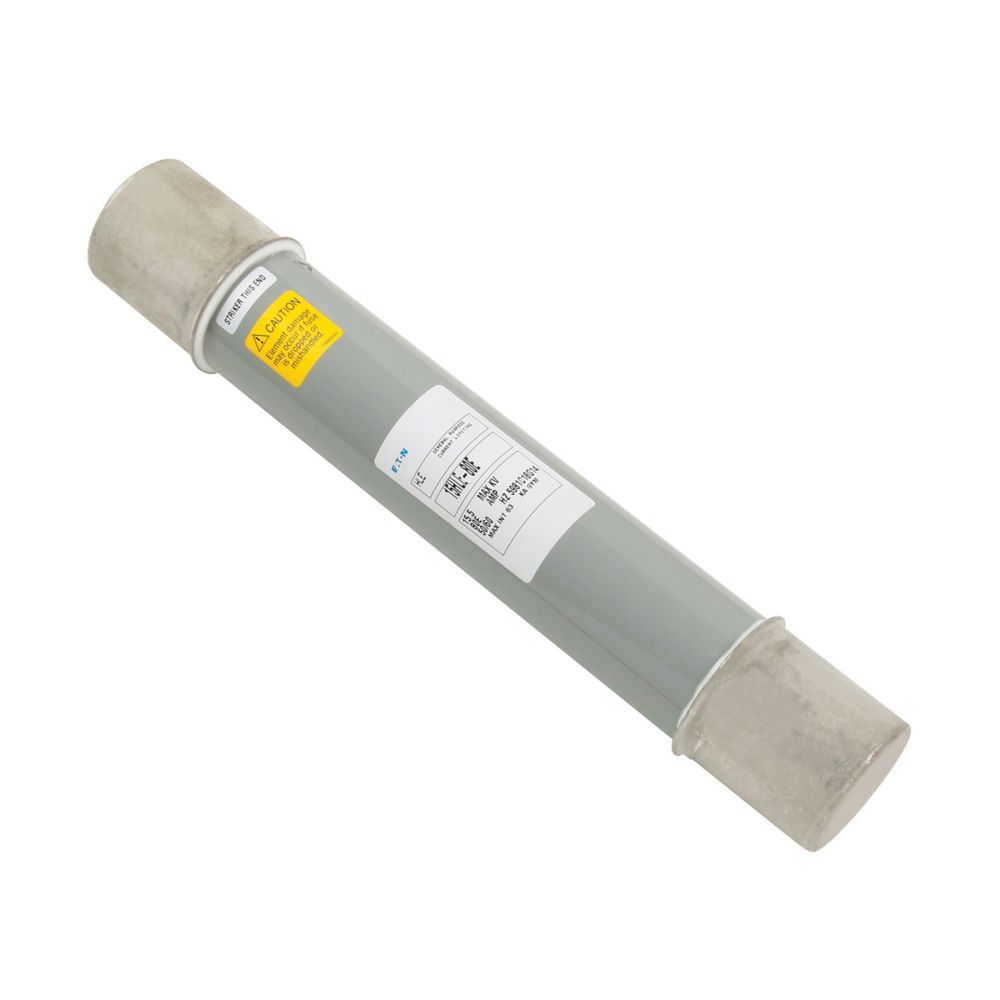

5HLE-300E Bussmann Medium E Rated Fuse
| Product name | Eaton Bussmann series HLE fuse |
| Part no. | 5HLE-300E |
| Voltage Rating | 4.8KV |
| Current Rating | 300A |
| Datasheet | |
| Product Length | 404mm |
| Product height | 76mm |
| Product width | 76mm |
| Product weight | 8kg |
| Fuse Type | E-Rated medium voltage ferrule fuses |
| Special Feature | Indoor/outdoor, double barrel |
| Class | Class E Fuse |
| CAD,3D Model | stp |
