- Specification
- Datasheet download
| Part no. | 90FE |
| Article no. | 10720961 |

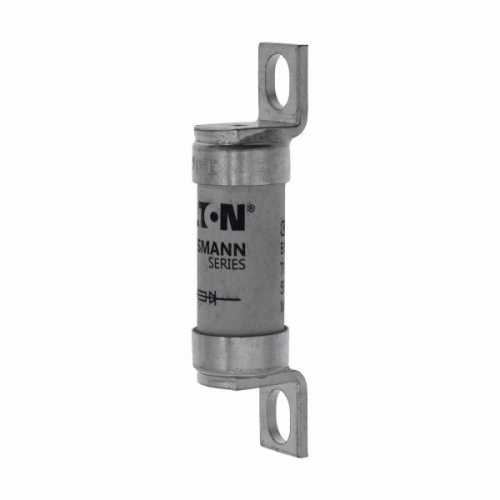

| Product name | Eaton Bussmann series high speed british standard fuse |
| Part no. | 90FE |
| EAN | 5027590491365 |
| Product Length/Depth | 82 millimetre |
| Product height | 39 millimetre |
| Product width | 91 millimetre |
| Product weight | 41.4 gram |
| Compliances | RoHS Compliant CE Marked |
| Certifications | UL Recognized IEC Rated |
| Product Type | High speed british standard fuse |
| Amperage Rating | 90 A |
| Voltage rating | 690 V (IEC), 700 V (UL) |
| Rated voltage AC | 690 V |
| Rated voltage DC | 500 V |
| Interrupt rating | 200 kA RMS Sym, 50 kA at 500 Vdc |
| Class | Class aR |
| Clearing (I2T) | 1300 at 415 V, 2100 at 660 V |
| Watt losses | 20 W |
