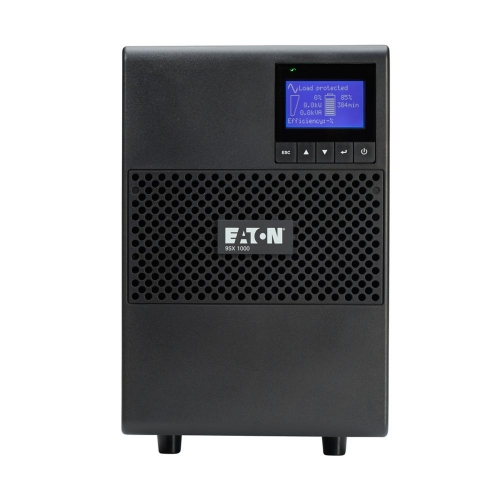

9SX1000-Eaton-UPS
Eaton 9SX online, extended runtime UPS, 1000 VA, 900 W, 5-15P input, Outputs: (6) 5-15R, 9.9"Hx6.3"Wx15.1"D, 30.9 lb., network card optional.
| GENERAL SPECIFICATIONS | |
| PRODUCTNAME | Eaton 9SX UPS |
| CATALOG NUMBER | 9SX1000 |
| UPC | 743172091239 |
| PRODUCTLENGTH/DEPTH | 15.1 in |
| PRQDUCT HEIGHT | 9.9 in |
| PRODUCT WIDTH | 6.3 in |
| PRODUCTWEIGHT | 30.9 Ib |
| WARRANTY | 3 year limited |
| COMPLIANCES | FCC Complian |
| CE Marked | |
| ENERGY STAR certified | |
| CERTIFICATIONS | cULus Listed |
| PRODUCT SPECIFICATIONS | |
| BATTERY MANAGEMENT | ABM technology (3-stage charging extends battery service life by |
| 50% and provides advance warning for battery replacement) | |
| OUTPUT WAVEFORM | True sine wave |
| VA RATING | 1000 VA |
| MAX NUMBER OF BATTERY PACKS | 4 |
| WATTAGE | 900 W |
| QUTPUT PQWER FACTOR | 0.9 |
| FORM FACTOR | Tower |
| POTENTIAL FREE SWITCH CONTACT | Yes |
| RECEPTACLE | (6)5-15R |
| STANDARD FACTORY WARRANTY | 3-YEAR FACTORY WARRANTY |
| -3 years | |
| Parts, electronics and batteries coverage | |
| -Standard ground shipping | |
| - Technical support | |
| INPUT CONNECTION 5- 15P | |
| FEED TYPE | 1 |
| RUNTIME GRAPH | View runtime graph |
| USER INTERFACE | 5-button graphical user interface |
| BATTERY REPLACEMENT | Hot-swappable internal batteries and extended battery modules |
| (EBMs) | |
| EFFICIENCY | 90.81% |
| NUMBER OF OUTPUTS 5-15R | 6 |
| VOLTAGE | 120V |
| INPUT CORD LENGTH | 8 ft |
| TEMPERATURE RANGE | 0° to 40°℃(32° to 104°F) |
| COMMUNICATION | (1) MiniSlot |
| (1) USB port | |
| (1)Serial RS-232 port | |
| (1) RPO/ROO/Signal input terminal | |
| (1) mini-terminal block for output relay | |
