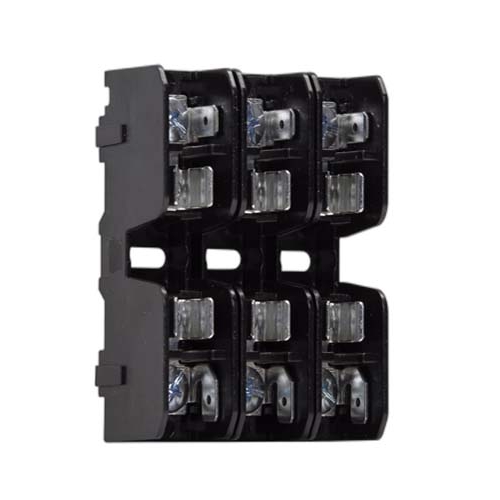

BUSSMANN BMM603-3SQ Fuse Accessory

Bussmann BMM603-3SQ 10x38mm FUSE HOLDER

BCM (Class CC) and BMM (supplemental13/32 x 1-1/2” /10x38mm) modular style fuseblocks with optional covers.

The BCM and BMM modularfuse blocks contain features thatadd versatility, reduce labor andenhance safety of any paneldesign. Optional IP20 finger-safecovers enhance safety with alockout/tagout feature along withoptional open fuse indication tospeed troubleshooting.

600V

30A

SCCR 200 kA RMS Sym.

Flammability ratings

• Blocks UL 94V0, self-extinguishing

• Covers UL 94HB, self-extinguishing

Features • Available in 1-, 2- and 3-pole configurations to meet stockingrequirements

• Blocks are fully modular with a snap-together design that providestoolless assembly of multiple pole blocks at point-of-use to reduceinventory and save assembly time and labor

• DIN-Rail and panel mount versatility allows one product to be usedfor multiple applications, lowering inventory cost

• Compact footprint consumes minimal panel space

Operating and storage temperature range

• Blocks -40°C to +120°C • Non indicating covers -40°C to +120°C

• Indicating covers -20°C to +90°C** ** Indication requires minimum 90 V and closed circuit to illuminate.
