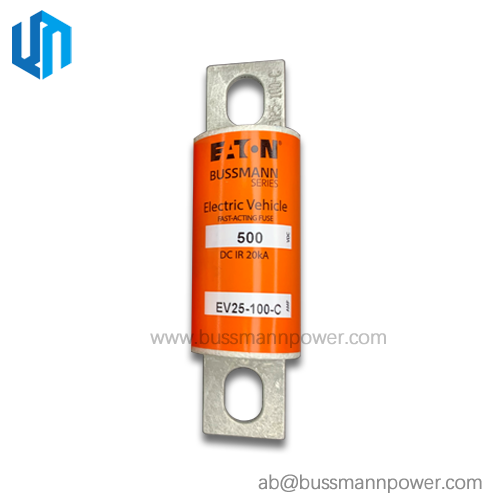

Bussmann/Eaton EV25-100-C 500VDC 100A Electric vehicle power fuses DC fuses
Browse：
- Specification
- Datasheet download
Electric vehicle auxiliary fuses —500 Vdc, 5-50 A
Description:
Eaton's Bussmann® series Electric Vehicle (EV) fuses for the protection of high power battery
charging and management systems up to 500 Vdc in ratings from 50 to 400 amps.
Specifications:
• Min DC 200%
• JASO D622
• ISO 8820-8
Packaging：
250 per carton
• 25mm fuses: 20 per pallet
100 per carton
• 30mm fuses: 20 per pallet
100 per carton
Catalog numbers:
| Catalog no. | Average @ 20 kA/500 Vdc* | Clearing 12t | Power loss (W) @ 50%** | |
| Amp | Melting 12t | |||
| 20 mm diameter case | ||||
| EV20-50-C | 50 | 368 | 746 | 1.19 |
| EV20-60-C | 60 | 529 | 1074- | 1.43 |
| EV20-70-C | 70 | 720 | 1,462 | 1.67 |
| EV20-80-C | 80 | 910 | 2,200 | 1.90 |
| EV20-100-C | 100 | 1,470 | 2,983 | 2.38 |
| EV20-125-C | 125 | 1,384 | 4,114 | 3.12 |
| EV20-150-C | 150 | 1,993 | 5,924 | 3.75 |
| 25 mm diameter case | ||||
| EV25-100-C | 100 | 1,043 | 2,317 | 3.00 |
| EV25-125-C | 125 | 1,630 | 3,620 | 3.75 |
| EV25-150-C | 150 | 1,618 | 5,499 | 4.50 |
| EV25-175-C | 175 | 2,202 | 7,485 | 5.25 |
| EV25-200-C | 200 | 3,398 | 10,220 | 6.00 |
| EV25-225-C | 225 | 4,300 | 12,934 | 6.97 |
| EV25-250-C | 250 | 5,309 | 15,968 | 775 |
| 30 mm diameter case | ||||
| EV30-200-C | 200 | 3,211 | 8,665 | 6.74 |
| EV30-225-C | 225 | 4,064 | 10,967 | 758 |
| EV30-250-C | 250 | 5,017 | 13,539 | 8.42 |
| EV30-300-C | 300 | 7,224 | 19,496 | 10.11 |
| EV30-350-C | 350 | 9,833 | 26,536 | 11.79 |
| EV30-400-C | 400 | 12,843 | 34,660 | 13.47 |
* For system parameters below 500 Vdc and 20 kA,see clearing l2t correction factors on page 9.
** 50 percent of fuse label amp rating tested at 23°C ± 2°C.
Dimensionsᵻ - mm:
| Catalogue number | A | B | C | DI | D2 | E | F | G | H |
| EV20-Amp-C | 81 | 20 | 40 | 66 | 57 | 8.7 | 16 | 7.7 | 3.2 |
| EV25-Amp-C | 92 | 25 | 53 | 77 | 68 | 8.8 | 19 | 7.8 | 3.2 |
| EV30-Amp-C | 92 | 31 | 53 | 75 | 68 | 8.8 | 25 | 9.0 | 4.8 |
