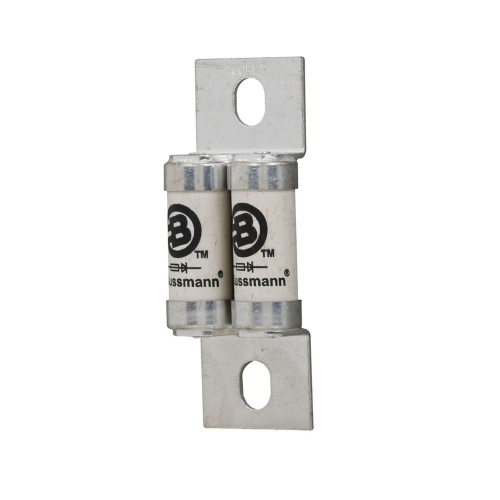

| Product Name | Eaton Bussmann series high speed british standard fuse |
| Catalog Number | 160EET |
| EAN | 5027590436960 |
| UPC | 051712831574 |
| Product Length/Depth | 94 mm |
| Product Height | 36 mm |
| Product Width | 20 mm |
| Product Weight | 91.6 g |
| Compliances | CE Marked RoHS Compliant |
| Certifications | IEC Rated UL Recognized Designed and tested to BS88 part 4 IEC 60269-4 |
| Amperage Rating | 160 A |
| Voltage rating | 690 V (IEC), 700 V (UL) |
| Rated voltage AC | 690 V |
| Rated voltage DC | 500 V |
| Interrupt rating | 200 kA RMS Sym, 50 kA at 500 Vdc |
| Class | Class aR |
| Pre arc (I2T) | 1500 |
| Clearing (I2T) | 10000 at 415 V, 17000 at 660 V |
| Watt losses | 39 W |
| Application | Semiconductor, DC Common bus, DC drives, power converters/rectifiers |
| Fuse indicator | None |
| Suitable for | EC-600 Trip indicator kit (indicator + clips) TI700 Fuse indicator MAI Microswitch/adaptor MBI Microswitch/adaptor |
