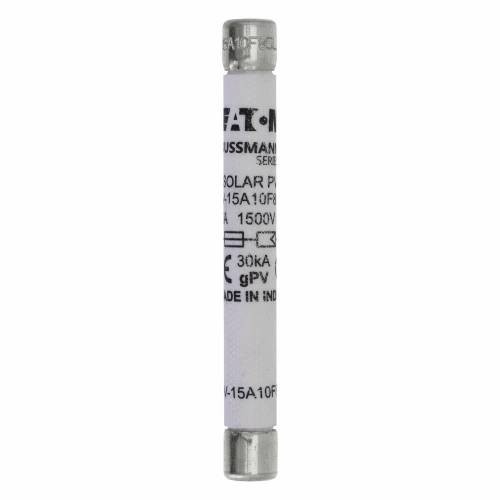

PV-15A10F85L Product description
Eaton’s Bussmann® series 10 x 85 mm fuse links are specifically designed to protect photovoltaic strings.
Features
Compatible with Eaton’s Bussmann series CHPV15L85 fuse holder (see data sheet 10628). • IEC and UL Accreditations
Technical data
• Rated voltage: 1500 V d.c.
• Rated current: 2.25, 2.5, 3, 3.5, 4, 5, 12, 15, 16, 20, 25 and 30 A
• Breaking capacity: 30 kA d.c. 1 ms
• Class of operation: gPV
Standards/Approvals
• IEC 60269
• UL 248-19
• RoHS compliant
Packaging
• MOQ: 10
Table 1. Technical Data
Dimensions - mm
