EATON BUSSMANN CHM1DI-48U Fuse accessories
PRODUCT NAME

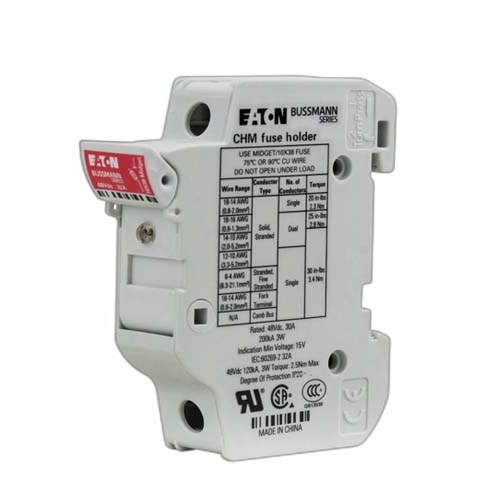

Eaton Bussmann series CHM modular fuse holder
CATALOG NUMBER
CHM1DI-48U
UPC
051712366212
PRODUCT LENGTH/DEPTH
.69 in
PRODUCT HEIGHT
2.91 in
PRODUCT WIDTH
3.28 in
PRODUCT WEIGHT
.22 lb
WARRANTY
Not Applicable
COMPLIANCES
Contact factory
CERTIFICATIONS
Contact Manufacturer
ELECTRICAL RATING
AMPERAGE RATING
30A (UL), 32A (IEC)
VOLTAGE RATING
48 Vdc (UL), 48 Vdc (IEC)
PHYSICAL DETAILS
NUMBER OF POLES
Single-pole
OPERATING TEMPERATURE - MAX
90 °C
OPERATING TEMPERATURE - MIN
-20 °C
GENERAL INFORMATION
USED WITH
For use with 10 mm X 38 mm fuse
It’s designed to work with Bussmann ferrule fuse with dimension of 10mm Diameter, 38mm length. Such as:
| C10G2 | C10M8 | FWA-5A10F | FWC-12A10F | FWP-4G10F |
| C10G4 | C10M12 | FWA-10A10F | FWC-3A10F | FWP-6G10F |
| C10G10 | C10M2 | FWA-20A10F | FWC-20A10F | FWP-8G10F |
| C10G20 | C10M25 | FWA-25A10F | FWC-1A10F | FWP-12G10F |
| C10G12 | C10M1 | FWA-15A10F | FWC-32A10F | FWP-16G10F |
| C10G25 | C10M10 | FWC-30A10F | FWP-20G10F | |
| C10G0.5 | C10M20 | FWC-8A10F | FWP-25G10F | |
| C10G6 | C10M4 | FWC-4A10F | FWP-32G10F | |
| C10G1 | C10M6 | FWC-10A10F | ||
| C10G16 | C10M0.25 | FWC-6A10F | ||
| C10G8 | C10M0.5 | FWC-16A10F | ||
| C10G32 | C10M16 | FWC-2A10F | ||
| FWC-30A10F |
