DD125—DD Industrial HRC Fuse Links
Catalogue symbol:
• DD(Amps)
Technical data:
• Rated voltage: 415 V a.c.
• Rated current: 125 to 200 A
• Breaking capacity: 80 kA a.c.
• Breaking range and utilisation category: gG / gM
Standards/approvals:
• BS88-2
• IEC 60269-2
• Suitable for use in RoHS compliant applications
Packaging: MOQ 5
Technical data：

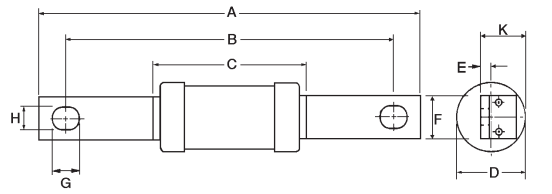

Dimensions - mm
