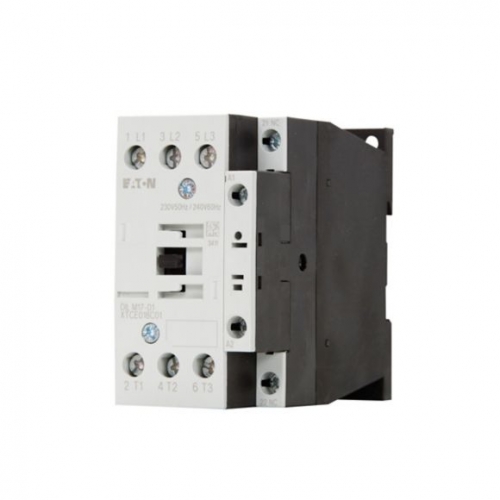

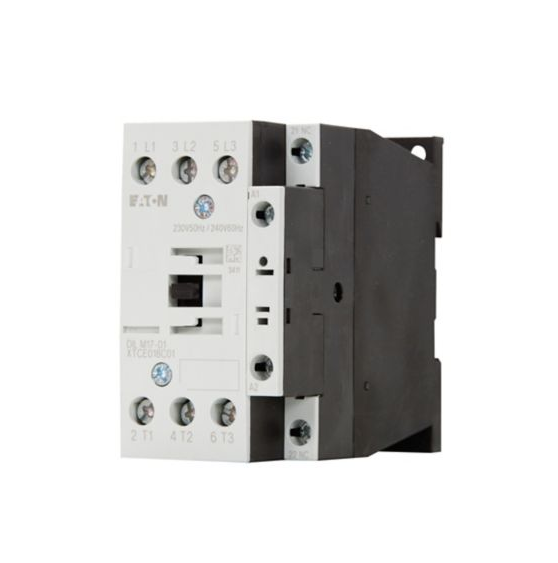

DILM17-01(230V50HZ,240V60HZ)
- Contactor, 3 pole, 380 V 400 V 7.5 kW, 1 NC, 230 V 50 Hz, 240 V 60 Hz, AC operation, Screw terminals
| Product name | Eaton Moeller@ series DILM contactor | |
| Part no | DILM17-01(230V50HZ,240V60HZ) | |
| EAN | 4015082770365 | |
| Product Length/Depth | 97 millimetre | |
| Product height | 85 millimetre | |
| Product width | 45 millimetre | |
| Product weight | 0.428 kilogram | |
| Certifications | EC 60947-4-1 UL Listed | |
| FN 60947.4- CSA Certified | ||
| CE CSA-C22.2 No.60947-4-1-14 | ||
| CSA UL | ||
| VDE 0660 UL Category Control No.: NLDX | ||
| IEC/EN 60947-4-1 UL60947-4-1 | ||
| CSA Class No.:2411-03,3211-04 UL File No.:E29096 | ||
| EC/EN 60947 CSA File No.: 012528 | ||
| Product Tradename | DILM | |
| Product Type | Contactor | |
| Product Sub Type | None | |
| Catalog Notes | Contacts according to EN 50012 | |
| Features & Functions | ||
| Fitted with | Mirror contact | |
| General information | ||
| Application | Contactors for Motors | |
| Degree of protection | IP00 | |
| Frame size | ES2 | |
| Lifespan, mechanical | 10,000,000 Operations (AC operated) | |
| Operating frequency | 5000 mechanical Operations/h (AC operated) | |
| Overvoltage category | Ⅲ | |
| Pollution degree | 3 | |
| Product category | Contactors | |
| Protection | Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274 | |
| Rated impulse withstand voltage(Uimp) | 8000V AC | |
| Resistance per pole | 2.7 mΩ | |
| Utilization category | AC-3: Normal AC induction motors: starting, switch off during running | |
| AC-4: Normal AC induction motors: starting, plugging reversing, inching | ||
| AC-1: Non-inductive or slightly inductive loads resistance furnaces | ||
| Voltage type | AC | |
