170M — Square Body size 1* to 3, flflush-end contact
1000 Vac (IEC and UL), 50 to 1400 A
Square body flush-end contact high speed fuses, for the protection
of DC common bus, DC drives, power converters/rectifiers and
reduced rated voltage starters. Catalog numbers come with Type K
indicator for use with microswitches.
Ratings
• Volts
1000 Vac (IEC, 50-1250 A)
1000 Vac (UL, 250-1100 A)
900 Vac (IEC, 1400 A
• Amps 50-1400 A
• IR 125 kA RMS Sym.
Operating class aR
Agency information
• Designed and tested to IEC 60269 Part 4
• UL Recognized, JFHR2, E125085 (only sizes 2 and 3 up to 1100 A)
• CE
Dimensions — mm
Type -BKN/- and -GKN/-
| Size | Type | A | B | D (max) | E | F | F1 (in) | G (min) | H |
| 1* | BKN/75 + GKN/75 | 72.5 | 74.0 | 61 | 43 | M8 | 5/16-18 UNC-2B | 5 | 175 |
| 1 | BKN/75 + GKN/75 | 73.2 | 74.0 | 69 | 52 | M8 | 5/16-18 UNC-2B | 8 | 20.0 |
| 2 | BKN/75 + GKN/75 | 73.2 | 74.4 | 77 | 59 | M10 | 3/8-16 UNC-2B | 10 | 24,5 |
| 3 | BKN/75 + GKN/75 | 73.3 | 75,4 | 92 | 74 | M12 | 1/2-13 UNC-2B | 10 | 30,0 |
| BKN/90 + GKN/90 | 80.3 | 91.4 | 92 | 74 | M12 | 1/2-13 UNC-2B | 10 | 30.0 |
1 Valid for fuse Types -GKN/-.
170M — Square Body size 1* to 3, flflush-end contact
1000 Vac (IEC and UL), 50 to 1400 A
| Fuse size | Rated voltage | Rated current (amps) | I²t (A²s) | Watts loss (W)t | Catalog no. | ||
| Pre-arcing | Clearing at rated voltage | -BKN/- Type K indicator for microswitch | -GKN/- Type K indicator for microswitch | ||||
| 1* | 1000 Vac (IEC) | 50 | 135 | 815 | 20 | 170M3951 | 170M3921 |
| 63 | 215 | 1,300 | 25 | 170M3952 | 170M3922 | ||
| 80 | 460 | 2,750 | 30 | 170M3953 | 170M3923 | ||
| 100 | 860 | 5,100 | 35 | 170M3954 | 170M3924 | ||
| 125 | 1,450 | 8,600 | 40 | 170M3955 | 170M3925 | ||
| 160 | 2,850 | 17,500 | 45 | 170M3956 | 170M3926 | ||
| 200 | 4,950 | 29,500 | 50 | 170M3957 | 170M3927 | ||
| 250 | 9,550 | 57,000 | 55 | 170M3958 | 170M3928 | ||
| 315 | 21,500 | 130,000 | 65 | 170M3959 | 170M3929 | ||
| 350 | 29r000 | 175,000 | 70 | 170M3960 | 170M3930 | ||
| 400 | 42,000 | 250,000 | 75 | 170M3961 | 170M3931 | ||
| 1 | 1000 Vac IEC) | 160 | 2,200 | 13,500 | 40 | 170M4951 | 170M4921 |
| 200 | 4,150 | 24,500 | 45 | 170M4952 | 170M4922 | ||
| 250 | 7,750 | 46,000 | 52 | 170M4953 | 170M4923 | ||
| 315 | 16,500 | 98,500 | 60 | 170M4954 | 170M4924 | ||
| 350 | 21,500 | 130,000 | 65 | 170M4955 | 170M4925 | ||
| 400 | 31r000 | 185,000 | 70 | 170M4956 | 170M4926 | ||
| 450 | 44,500 | 265,000 | 80 | 170M4957 | 170M4927 | ||
| 500 | 63,000 | 375,000 | 85 | 170M4958 | 170M4928 | ||
| 550 | 84,500 | 500,000 | 90 | 170M4959 | 170M4929 | ||
| 630 | 125,000 | 755,000 | 98 | 170M4960 | 170M4930 | ||
| 2 | 1000 Vac (IEC/UL) | 250 | 6,750 | 40,000 | 65 | 170M5952 | 170M5922 |
| 315 | 13,500 | 81,500 | 75 | 170M5953 | 170M5923 | ||
| 350 | 16,500 | 99,000 | 80 | 170M5954 | 170M5924 | ||
| 400 | 26,000 | 155,000 | 85 | 170M5955 | 170M5925 | ||
| 450 | 35,500 | 210,000 | 90 | 170M5956 | 170M5926 | ||
| 500 | 49,500 | 295,000 | 95 | 170M5957 | 170M5927 | ||
| 550 | 66r000 | 390,000 | 100 | 170M5958 | 170M5928 | ||
| 630 | 93,500 | 555,000 | 110 | 170M5959 | 170M5929 | ||
| 700 | 130,000 | 770,000 | 115 | 170M5960 | 170M5930 | ||
| 800 | 195,000 | 1,200,000 | 125 | 170M5961 | 170M5931 | ||
| 3 | 1000 Vac (IEC/UL) | 315 | 9,200 | 54,500 | 90 | 170M8600 | 170M8500 |
| 350 | 13,000 | 7Z500 | 95 | 170M8601 | 170M8501 | ||
| 400 | 19,000 | 115,000 | 105 | 170M8602 | 170M8502 | ||
| 450 | 27,000 | 160,000 | 107 | 170M8603 | 170M8503 | ||
| 500 | 37,500 | 225,000 | 110 | 170M8604 | 170M8504 | ||
| 550 | 52,000 | 310,000 | 115 | 170M8605 | 170M8505 | ||
| 630 | 82,500 | 490,000 | 120 | 170M8606 | 170M8506 | ||
| 700 | 115,000 | 700,000 | 125 | 170M8607 | 170M8507 | ||
| 800 | 170,000 | 1,050,000 | 135 | 170M8608 | 170M8508 | ||
| 900 | 250,000 | 1,500,000 | 145 | 170M8609 | 170M8509 | ||

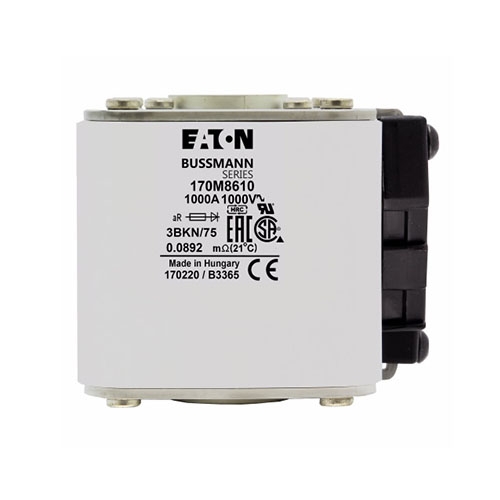

| 1,000 | 340,000 | 2,050,000 | 150 | 170M8610 | 170M8510 | ||
| 1,100 | 460,000 | 2,750,000 | 155 | 170M8611 | 170M8511 | ||
| 1000 Vac (IEC) | 1,250 | 575,000 | 3,400,000 | 175 | 170M86121 | 170M85121 | |
| 900 Vac (IEC) | 1,400 | 795,000 | 4,200,000 | 185 | 170M86131 | 170M85131 | |
† Watts loss at rated current.
1 Overall length is 90mm, for all other fuses the overall length is 75mm.
