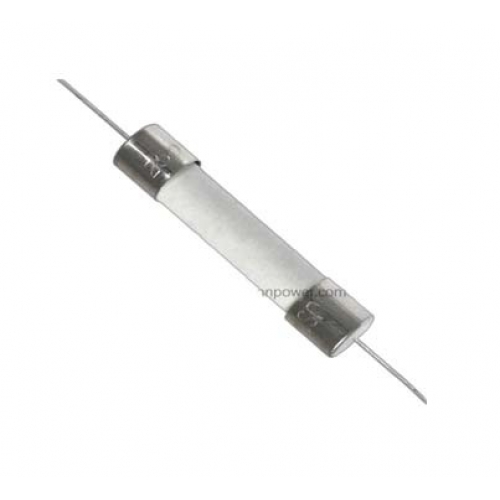

1⁄4” x 1 1⁄4” Fast-acting ceramic tube fuses
| Product Attribute | Attribute Value | Search Similar |
|---|---|---|
| Eaton | ||
| Cartridge Fuses | ||
| RoHS: | Details | |
| ABC | ||
| Ceramic Fuse | ||
| 20 A | ||
| Fast Blow | ||
| 3AG (6.3 mm x 32 mm) | ||
| 250 VAC | ||
| 125 VDC | ||
| 400 A | ||
| Board Mount | ||
| Axial | ||
| Bulk | ||
| 3.66 mOhms | ||
| Body Style: | Cylindrical Leaded | |
| Diameter: | 6.76 mm | |
| Indicator Style: | Without Indicator | |
| Length: | 32.82 mm | |
| Brand: | Bussmann / Eaton | |
| Product Type: | Fast Acting Ceramic Tube Fuse | |
| Factory Pack Quantity: | 100 | |
| Subcategory: | Fuses | |
| Part # Aliases: | BK-ABC-V-20-R | |
| Unit Weight: | 0.134923 oz |
Dimensions - mm
Drawing Not to Scale
| Specificatios | ||||||||||||||
| Part Number | Voltage Ratings | Vac Interrupting Ratings* (amps) | Vdc Interrupting Ratings (amps) | Typical DC Cold Resistance ()** | Typical Pre-Arc I2t AC† | Typical Voltage Drop (V)‡ | Agency Approvals | |||||||
| Vac | Vdc | 250V | 125V | 125V | 75V | UL | UR | CSA | ||||||
| ABC-1⁄4-R | 250 | 125 | 35 | 10,000 | 10,000 | – | 2.950 | 0.0020 | 0.35 | X | X | |||
| ABC-1⁄2-R | 250 | 125 | 35 | 10,000 | 10,000 | – | 0.587 | 0.0390 | 0.41 | X | X | |||
| ABC-3⁄4-R | 250 | 125 | 35 | 10,000 | 10,000 | – | 0.300 | 0.1450 | 0.32 | X | X | |||
| ABC-1-R | 250 | 125 | 35 | 10,000 | 10,000 | – | 0.1950 | 0.4310 | 0.3 | X | X | |||
| ABC-1-1⁄2-R | 250 | 125 | 100 | 10,000 | 10,000 | – | 0.131 | 1.1630 | 0.28 | X | X | |||
| ABC-2-R | 250 | 125 | 100 | 10,000 | 10,000 | – | 0.0890 | 2.1670 | 0.31 | X | X | |||
| ABC-2-1⁄2-R | 250 | 125 | 100 | 10,000 | 10,000 | – | 0.061 | 4.4670 | 0.23 | X | X | |||
| ABC-3-R | 250 | 125 | 100 | 10,000 | 10,000 | – | 0.047 | 6.55 | 0.14 | X | X | |||
| ABC-4-R | 250 | 125 | 200 | 10,000 | 10,000 | – | 0.031 | 22.28 | 0.17 | X | X | |||
| ABC-5-R | 250 | 125 | 200 | 10,000 | 10,000 | – | 0.026 | 32.83 | 0.22 | X | X | |||
| ABC-6-R | 250 | 125 | 200 | 10,000 | 10,000 | – | 0.021 | 58 | 0.19 | X | X | |||
| ABC-7-R | 250 | 125 | 200 | 10,000 | 10,000 | – | 0.016 | 109.33 | 0.17 | X | X | |||
| ABC-8-R | 250 | 125 | 200 | 10,000 | 10,000 | – | 0.014 | 116.5 | 0.19 | X | X | |||
| ABC-10-R | 250 | 125 | 200 | 10,000 | 10,000 | – | 0.011 | 208.8 | 0.15 | X | X | |||
| ABC-12-R | 250 | 125 | 750 | 10,000 | 10,000 | – | 0.0068 | 133.3 | 0.1 | X | X | |||
| ABC-15-R | 250 | 125 | 750 | 10,000 | 10,000 | – | 0.00553 | 200.2 | 0.1 | X | X | |||
| ABC-18-R | 250 | – | 400 | 1000 | – | – | 0.00465 | 400 | 0.1 | X | X | |||
| ABC-20-R | 250 | 125 | 400 | 1000 | 10,000 | – | 0.00366 | 550.8 | 0.1 | X | X | |||
| ABC-25-R | 250 | 125 | 200 | 1000 | 400 | 1000 | 0.0028 | 839.3 | 0.09 | X | X‡‡ | |||
| ABC-30-R | 250 | 125 | 200 | 1000 | 400 | 1000 | 0.002225 | 1429 | 0.09 | X | X‡‡ | |||
* Interrupting ratings measured at 70% - 80% power factor on AC. The interrupting ratings for 18A and 20A were measured at 85% - 95% power factor on AC. The
interrupting ratings for 25A and 30A were measured at 89% power factor on AC.
** Typical DC cold resistance measured at<10% of rated current.
† Typical melting I2t measured at listed interrupting rating and rated voltage.
‡ Typical voltage drop measured at 25°C±3°C ambient temperature at rated current.
‡‡ CSA approvals for 25A and 30A are at 125Vac - IR 1000A and 125Vdc - IR 400A (IR 1000A at 75Vdc)
