Description

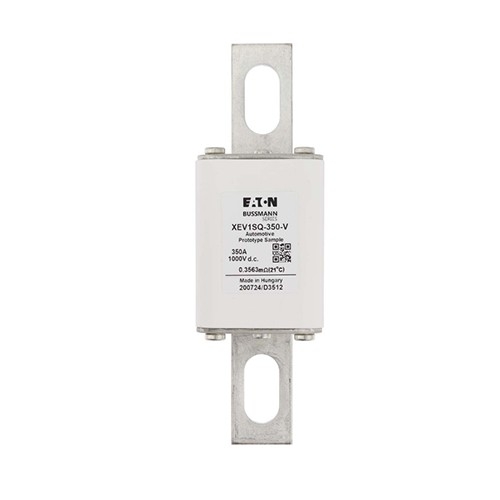

Eaton’s Bussmann series pre-production and sample electric vehicle square body fuse links have been specifically selected and designed to meet the power requirement for battery and drive inverter protection,
as well as DC charging and short-circuit back-up protection. Therefore, we offer a range of standardised 500Vd.c. and 1000Vd.c. production samples for incorporation in test program.
Catalogue symbol
| Rated voltage | ||
| Fuse body sizes | 500 V d.c. | 1000 V d.c. |
| 1 | XEV1XSQ-Amps-V | XEV1XSQ-Amps-V |
| 2 | XEV1SQ-Amps-V | XEV1SQ-Amps-V |
| 3 | XEV2SQ-Amps-V | XEV2SQ-Amps-V |
| Technical data | ||||||
| Catalogue number with bolted blade | Fuse body size | Rated current (Amps) | Rated voltage (V d.c.) | Pre-arcing l2t | Power loss at 0.5 x 1 (W) n | Power loss at ln (W) |
| XEV1XSQ-250 | r | 250 | 500 | 4,200 | 8 | 40 |
| XEV1XSQ-315 | 1* | 315 | 500 | 7,000 | 10 | 50 |
| XEV1XSQ-350 | 1* | 350 | 500 | 10,000 | 10 | 55 |
| XEV1XSQ-400 | 1* | 400 | 500 | 15,000 | 11 | 60 |
| XEV1XSQ-450 | 1* | 450 | 500 | 21,000 | 12 | 65 |
| XEV1XSQ-500 | r | 500 | 500 | 27,000 | 13 | 70 |
| XEV1XSQ-550 | 1* | 550 | 500 | 34,000 | 14 | 75 |
| XEV1XSQ-630 | 1* | 630 | 500 | 48,500 | 15 | 80 |
| XEV1SQ-700 | 1 | 700 | 500 | 69,500 | 16 | 85 |
| XEV1SQ-800 | 1 | 800 | 500 | 105,000 | 18 | 95 |
| XEV2SQ-900 | 2 | 900 | 500 | 125,000 | 21 | 110 |
| XEV2SQ-1K0 | 2 | 1,000 | 500 | 180,000 | 22 | 115 |
