Bussmann DC fuses provide the ultimate protection of the electric vehicle. such as: battery modules and battery packs. Bussmann DC fuses have been tested to provide DC applications best-in-class performance.
Such as: EV30-400.500VDC, 400amp fast acting fuse
- Specification
- Datasheet download

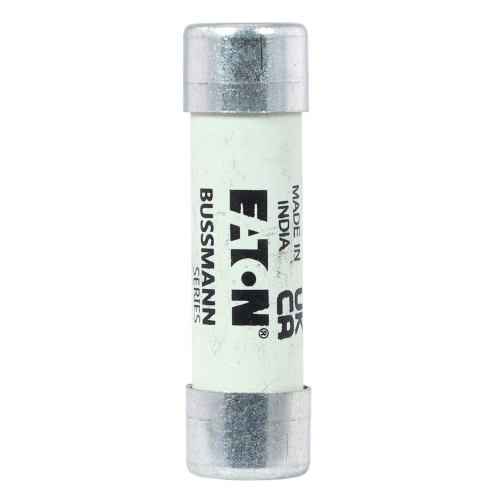

| Product Name | Eaton Bussmann series photovoltaic fuses |
| Catalog Number | PV-25A14F |
| Product Length/Depth | 51 mm |
| Product Height | 15 mm |
| Product Weight | 21.5 g |
| Warranty | Not Applicable |
| Certifications | IEC Rated UL Listed CCC pending |
| Amperage Rating | 25 A |
| Voltage rating | 1000 Vdc |
| Interrupt rating | 10 kAIC 30 kAIC |
| Class | Class gPV |
| Pre arc (I2T) | 65 |
| Watt losses | 5.1 W |
| Application | Photovoltaic strings |
| Fuse type | PV-A14F |
| Fuse indicator | Other |
| Fuse size | 14 x 51 mm |
| Suitable for | CHPV14 Modular fuse holder |
