Bussmann DC fuses provide the ultimate protection of the electric vehicle. such as: battery modules and battery packs. Bussmann DC fuses have been tested to provide DC applications best-in-class performance.
Such as: EV30-400.500VDC, 400amp fast acting fuse
- Specification
- Datasheet download

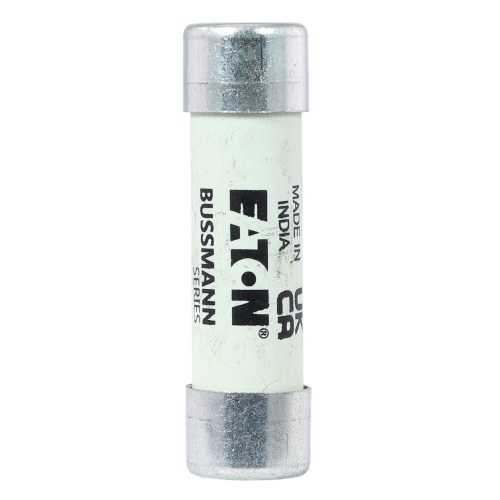

| Product Name | Eaton Bussmann series photovoltaic fuses |
| Catalog Number | PV-2-25A14LF |
| EAN | 5027590505673 |
| Product Length/Depth | 65 mm |
| Product Height | 14 mm |
| Product Weight | 12 g |
| Compliances | CE Marked RoHS Compliant |
| Certifications | IEC 60269 UL Listed CSA Certified |
| Amperage Rating | 2.25 A |
| Voltage rating | 1500 Vdc |
| Interrupt rating | 10 kAIC |
| Class | Class gPV |
| Pre arc (I2T) | 4 |
| Watt losses | 2.3 W |
| Application | Photovoltaic systems, inverters ,Photovoltaic strings |
| Fuse type | PV-A14LF |
| Fuse indicator | Non Indicating |
| Fuse size | 14 x 65 mm |
