Pyrofuse Eaton Bussmann EBPS65F40 arc triggered type breaker 400A 650 V DC

Manufacturer：Bussmann

Description :Eaton Bussmann EBPS65F40 650VDC 400A arc triggered type breaker is mainly composed of arc melting fuse, high speed breaker( Actuator included) and arc extinguish chamber etc.

Stock quantity(PCS) :0

Lead time ( Weeks ) :10

Categories：Pyrofuse; arc triggered type breaker,arc melting fuse; high speed breaker; Actuator,arc extinguish chamber

Browse：

Chat Now

Inquiry now

Specification
Datasheet download

Pyrofuse Eaton Bussmann EBPS65F40

arc triggered type breaker is mainly composed of arc melting fuse,

high speed breaker( Actuator included) and arc extinguish chamber etc.

1、Model definition

2、Performance Index

1. Rated voltage：650VDC

2. Rated current：400A

3. Main circuit copper bar conduction impedance：≤30uΩ

4. Main circuit disconnection resistance: ≥50MΩ，test voltage 1000VDC

5. Rated voltage：400A（90mm2 cable，105℃）

6.Operating temperature range：-40℃ - 105℃

7.Degree of protection：IP65

3、Interface

Interface terminal definition：

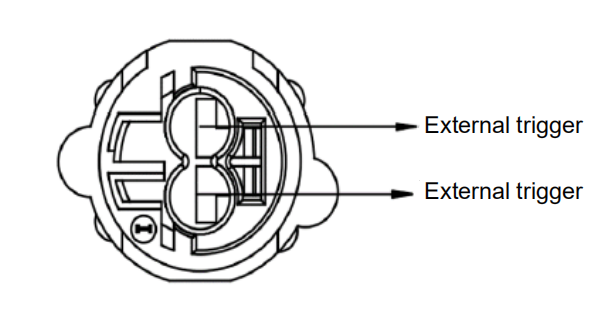

Schematic diagram of wiring terminal:

Pyro-Fuse 1000VDC Bussmann EBPS65F40.png

Schematic diagram of wiring terminal

4、Overall dimension

The installation dimension and overall dimension of the fuse shall comply with the

provisions of the following figure, with a tolerance of ± 1mm.

outline and installation dimension of fuse (unit: mm)
