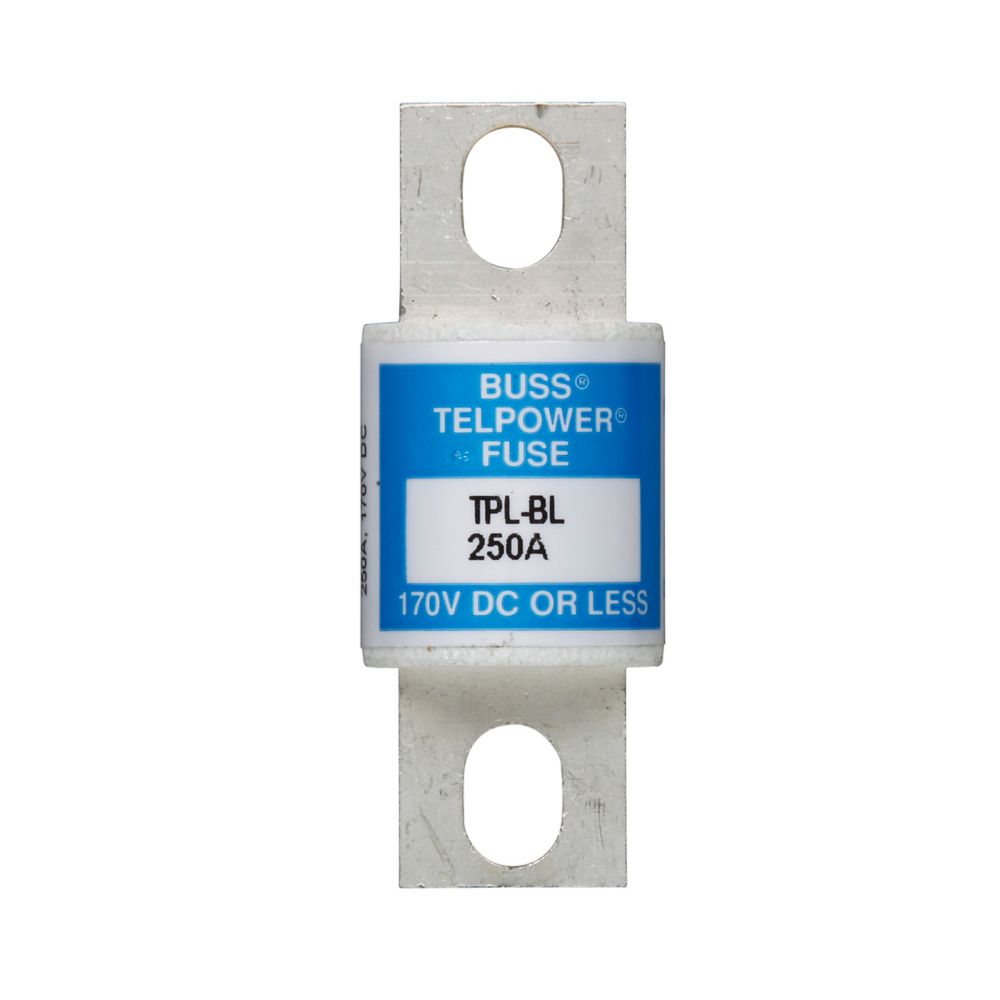

Telpower DC Power Distribution Fuses
170 Volts,DC,70-800 Amps
Catalog Numbers, Carton Quantity and Weight
| Catalogue Number | Ampere Rating | Carton Qty | Weight (per carton) | |
| Lbs | Kg | |||
| TPL-BA | 70 | 5 | 1.6 | 0.73 |
| TPL-BB | 80 | 5 | 1.6 | 0.73 |
| TPL-BC | 90 | 5 | 1.6 | 0.73 |
| TPL-BD | 100 | 5 | 1.6 | 0.73 |
| TPL-BE | 125 | 5 | 1.6 | 0.73 |
| TPL-BF | 150 | 5 | 1.6 | 0.73 |
| TPL-BG | 175 | 5 | 1.6 | 0.73 |
| TPL-BH | 200 | 5 | 1.6 | 0.73 |
| TPL-BK | 225 | 5 | 1.6 | 0.73 |
| TPL-BL | 250 | 5 | 1.6 | 0.73 |
| TPL-CN | 300 | 1 | 0.9 | 0.4 |
| TPL-CO | 350 | 1 | 0.9 | 0.4 |
| TPL-CR | 400 | 1 | 0.9 | 0.4 |
| TPL-CU | 450 | 1 | 0.9 | 0.4 |
| TPL-CY | 500 | 1 | 0.9 | 0.4 |
| TPL-CZ | 600 | 1 | 0.9 | 0.4 |
| TPL-CZH | 800 | 1 | 0.9 | 0.4 |
General Informatlon:
Designed for DC power distribution systems.
Recognized branch circuit protecion.
Current-limiting capabllity.
Complete system coordinatlon capabiily.
Energy savings with low watts loss, low operating temperatures, and minimum Pt levels.
Use with Telpower 15100,15200,TPHCS and TP158HC disconnect systems.
For replacement of Bussmanns UBO fuses, a TPL-TAadapter kit is necessary.
