BG150B12UX2S-I IGBT Power Module

Manufacturer：

Description :1200V VCES, 150A IC, IGBT Power Module, BYD Semiconductor, Induction heating application

Stock quantity(PCS) :0

Lead time ( Weeks ) :2

Categories：Induction heating, IGBT, IGBT Module, BYD, Semiconductor, insulated gate bipolar transistor, IC

Browse：

Chat Now

Inquiry now

Specification
Datasheet download

BG150B12UX2S-I IGBT BYD Power Module

BYD IGBT Power Module BG150B12UX2S-I provides fast switching characteristic as well as high short circuit capability, which introduce the advanced IGBT chip/FWDand improved connection.

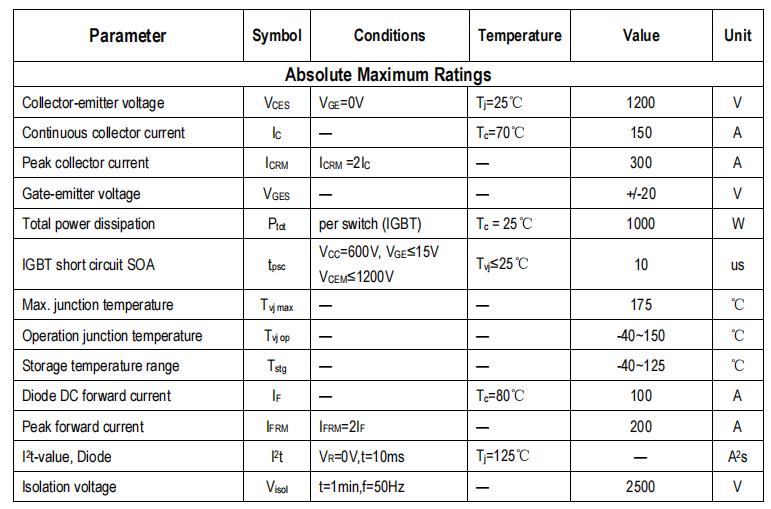

BG150B12UX2S-I IGBT BYD Power Module.jpg

Features

 High speed IGBT in trench/field stop technology

 Including ultra fast & soft recovery anti-parallel FWD

 Low inductance

 Standard package

 High short circuit capability

 Fast switching and short tail current

BG150B12UX2S-I Circuit Diagram

BG150B12UX2S-I Circuit Diagram.jpg

Applications

 Induction heating
