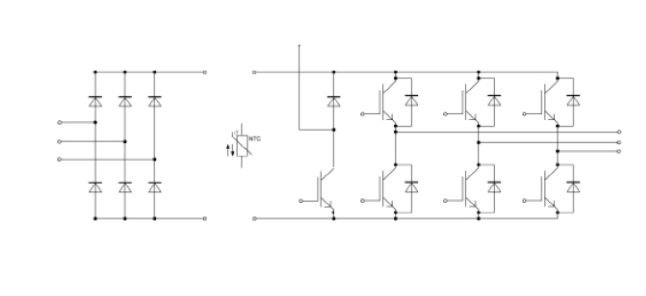

BG25G12H13L4-L BYD 1200V Inverter IGBT
BYD IGBT Power Module BG25G12H13L4-L provides low switching losses characteristic as well as high power and thermal cycling capability, which introduce the advanced IGBT chip/FWD and improved connection.

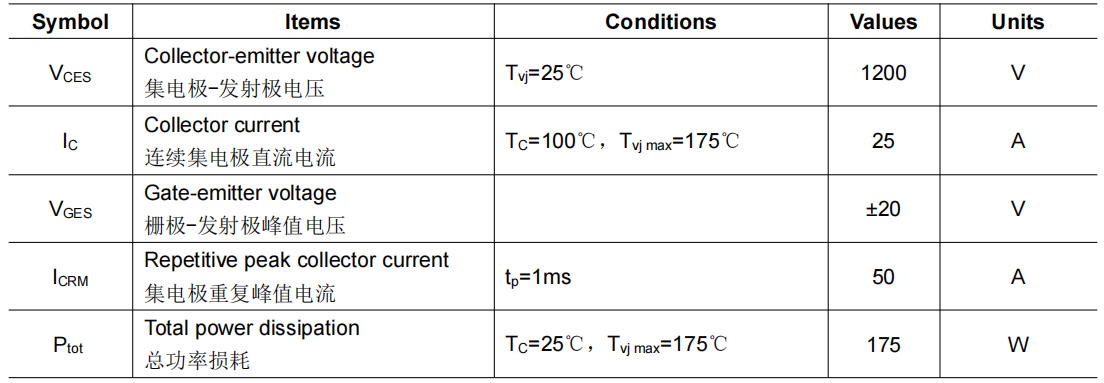

Maximum Rated Values
Key Features
1200V planar field-stop technology
Low conduction and switching losses
VCEsat with positive temperature coefficient
Low VCEsat
Applications
Auxiliary Inverters
Servo drives
Motor drives
