BG35G12H13L4 BYD IGBT Module

Manufacturer：

Description :VCES=1200V, IC=35A, IGBT Module, Inverter, Servo Drives, Medical Appliication

Stock quantity(PCS) :1000

Lead time ( Weeks ) :2

Categories：IGBT Module, BYD IGBT, Servo drives, Inverter, infineon igbt, 1200V igbt, Inverter IGBT, BG35G12H13L4

Browse：

Chat Now

Inquiry now

Specification
Datasheet download

BG35G12H13L4 BYD IGBT Module

BYD IGBT Power Module BG35G12H13L4 provides low switching losses characteristic as well as high power and thermal cycling capability, which introduce the advanced IGBT chip/FWD and improved connection.

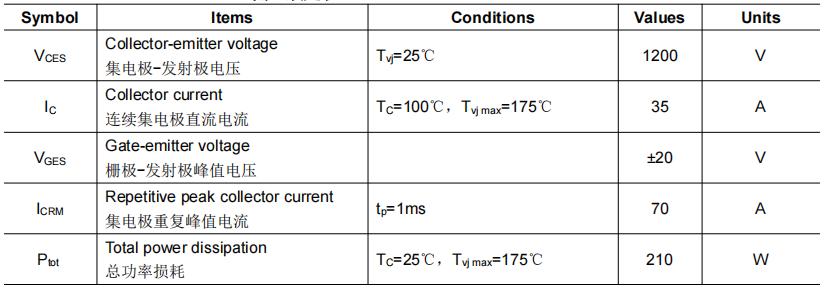

Maximum Rated Values.jpg

Key Features

 1200V planar field-stop technology

 Low conduction and switching losses

 VCEsat with positive temperature coefficient

 Low VCEsat

Applications

 Auxiliary Inverters

 Servo drives

 Motor drives

 MedicalApplications

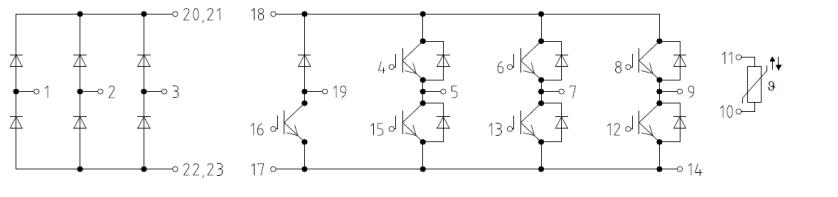

Circuit Diagram
