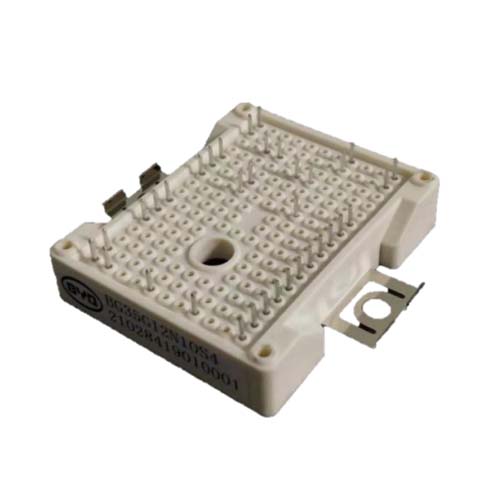

BG35G12N10S4 BYD IGBT Module

BG35G12N10S4 BYD IGBT Module

BG35G12N10S4 is a cabinet and high integrated power module encapsulated by Mini Pack that BYD has newly developed and designed. It highly combines convert circuit, breakdown circuit and invert circuit to make application circuit outside compact. It includes temperature detection function which can feedback quickly and output the analog temperature signal in real time.

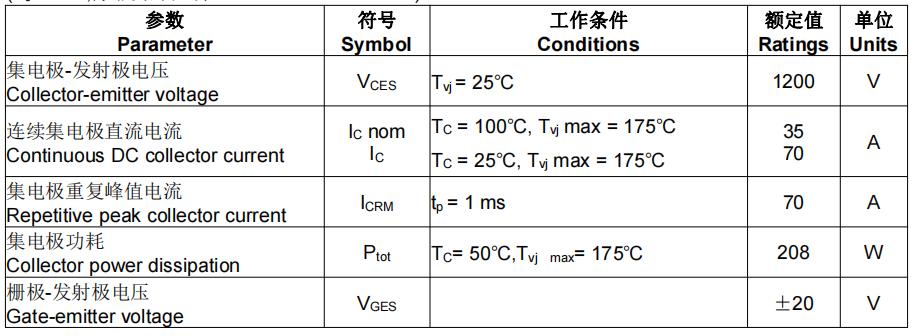

Features

 1200V/35A，VCEsat=2.0V@IC=35A，25℃

 Very low thermal resistance due to using DBC

 The 4 th technology of BYD IGBT chip, low conduction and switching losses

 Positive temperature coefficient

 Short Circuit withstand time-10μs

Typical Applications

 Home appliances applications like air condition

 Convert and servo controller

 Three-phase inverter for ac motor

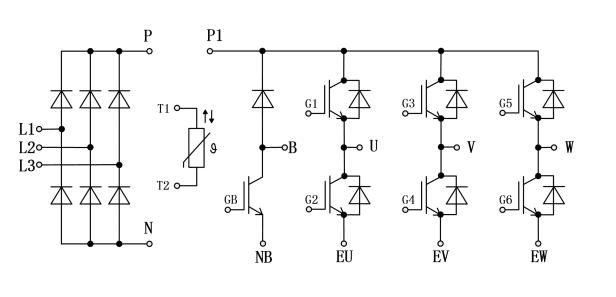

BG35G12N10S4 Circuit Diagram
