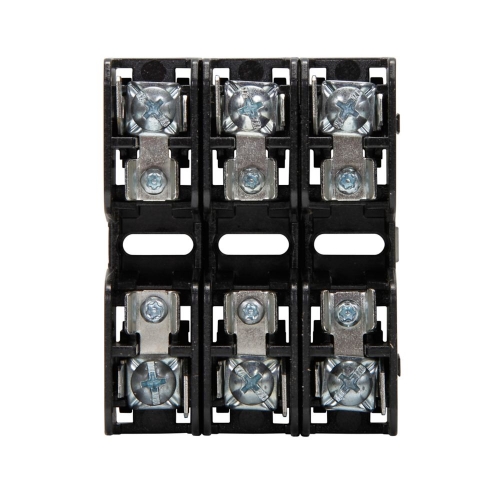

BMM603-3PQ Bussmann Fuse Holder
| Product name | Eaton Bussmann series BMM fuse blocks |
| Part no. | BMM603-3PQ |
| Voltage Rating | 600V |
| Current Rating | 30A |
| Datasheet | |
| Product Length | 3in |
| Product height | 1.3in |
| Product width | 2.4in |
| Product weight | 0.1lb |
| Fuse Type | 10*38mm Fuse |
| Connection | Pressure plate/quick connect |
| Number of Poles | Three-pole |
| CAD,3D Stp | Contact us |
BMM603-3PQ Dimensions
BMM Fuse Holder Family
| Screw with quick-connect | Pressure plate with quick-connect | Box lug | Poles | Fuse/class |
| BMM603-1SQ | BMM603-1PQ | BMM603-1C | 1 | 10x38 (13/32”x1-1/2”) |
| BMM603-2SQ | BMM603-2PQ | BMM603-2C | 2 | 10x38 (13/32”x1-1/3”) |
| BMM603-3SQ | BMM603-3PQ | BMM603-3C | 3 | 10x38 (13/32”x1-1/4”) |
| BCCMM603-3SQ | BCCMM603-3PQ | 3 | 3-Pole control circuit transformer block 2-pole CC with 1-pole 10x38mm (13/32” x 1-1/2”) |
