Household energy storage devices store electrical energy and use it when needed - also known as power storage products or "battery energy storage systems" (BESS), hereinafter referred to as home storage. The core component of home storage is rechargeable batteries, usually lithium-ion batteries or lead-acid batteries. The other components are inverters, which can intelligently control the charging and discharging control system.
bussmann EVH-300
Widely used in ESS systems, with good protection capability, excellent cost, small size, simple design and installation
EV 70VDC Fuse rating:
Rated Voltage: 70VDC
Rated Current: 60A ~ 500A
Interrupting Rating: 6000A@70VDC (TC=2±0.5ms)
Operating Temperature Range: -40℃~125℃
Housing Material: PPA-GF33
Terminals: Copper(Matt Tin Plated)
Mounting Torque M8: 20Nm±1Nm
Standard Reference: ISO20934-2019(Type SF51)
RoHS Compliant
DC 70V 60A-500A
Fuse Cross Reference
Littelfuse cross reference part #: 0898000
| Part Number | Current Rating (A) | Color Code | Rated Voltage (V) | Voltage Drop max. (mV) | Wire (mm2) | I2t (A2s) |
| EVH-60 | 60 | 70 | 110 | 6 | TBD | |
| EVH-80 | 80 | 70 | 110 | 10 | TBD | |
| EVH-100 | 100 | 70 | 110 | 10 | TBD | |
| EVH-125 | 125 | 70 | 110 | 16 | 68,400 | |
| EVH-150 | 150 | 70 | 110 | 25 | 114,000 | |
| EVH-175 | 175 | 70 | 110 | 25 | 202,800 | |
| EVH-200 | 200 | 70 | 110 | 35 | 316,800 | |
| EVH-225 | 225 | 70 | 110 | 35 | 430,800 | |
| EVH-250 | 250 | 70 | 110 | 50 | 620,400 | |
| EVH-300 | 300 | 70 | 80 | 50 | 456,000 | |
| EVH-350 | 350 | 70 | 80 | 50 | 914,400 | |
| EVH-400 | 400 | 70 | 80 | 70 | 406,800 | |
| EVH-450 | 450 | 70 | 80 | 70 | 562,800 | |
| EVH-500 | 500 | 70 | 80 | 70 | 1,266,000 |

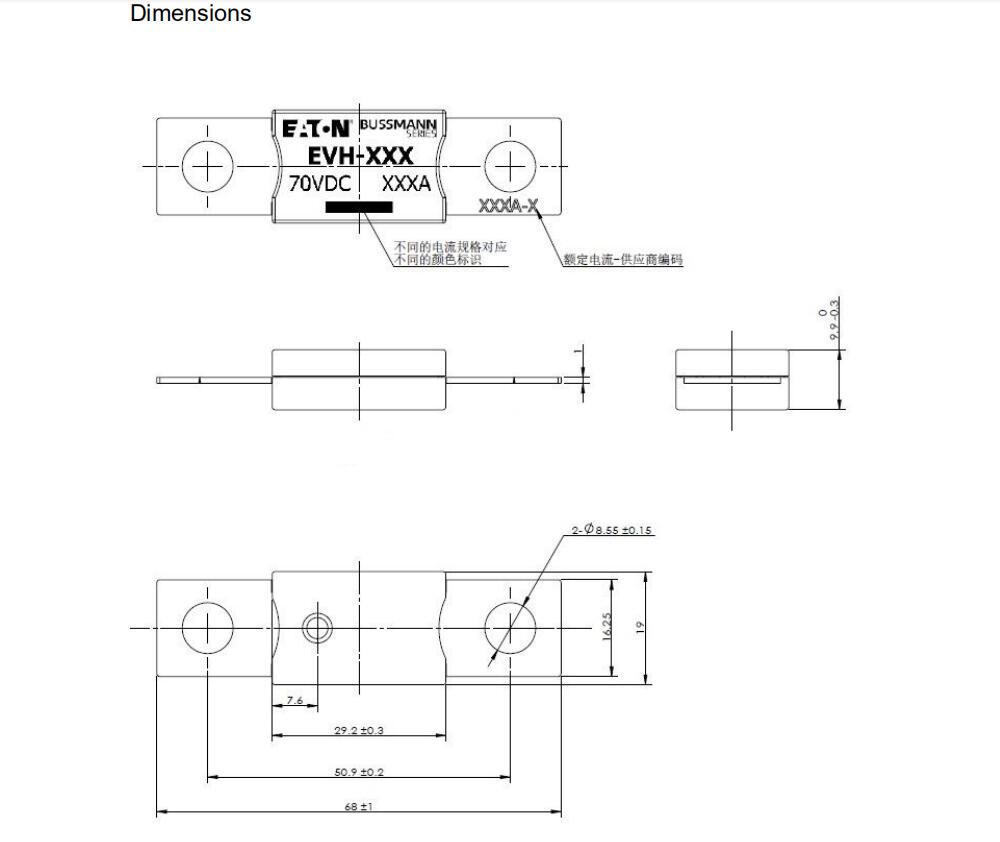

Fuse dimension

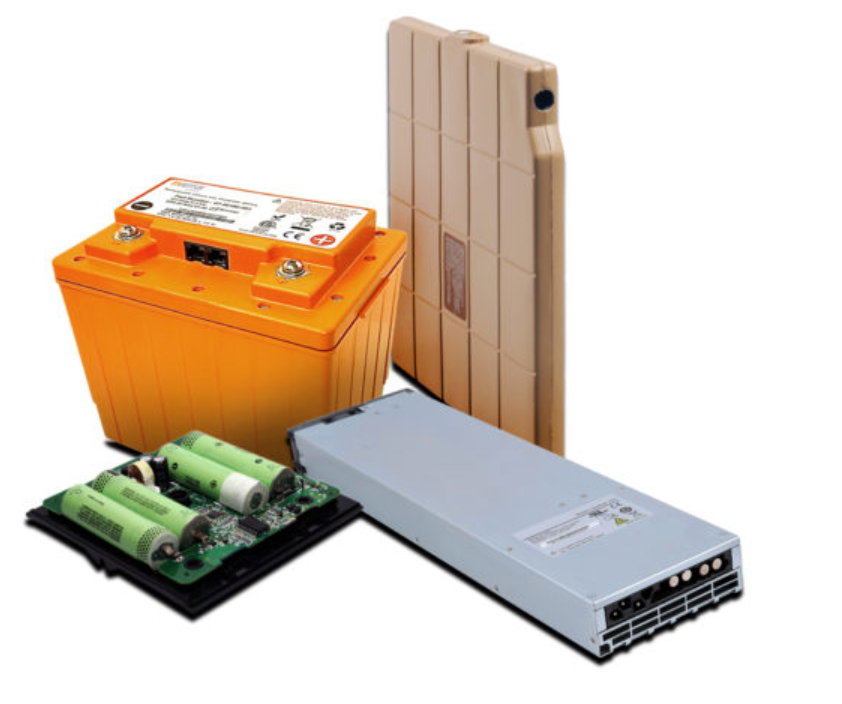

Application:
Battery Pack
15nHolted tag high speed fuses for the
