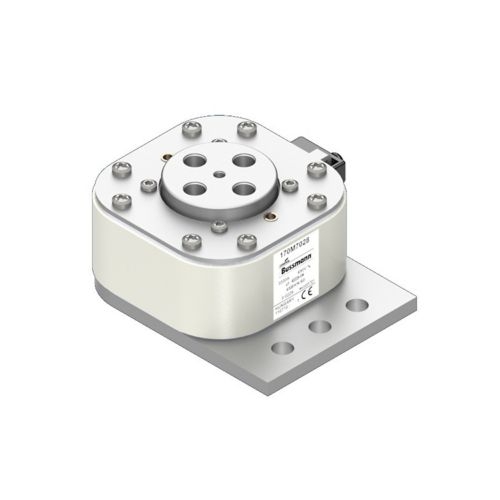

Bussmann high speed fuse, 3000 A, AC 690 V,square body fuse,4SBKN/60 AR,size 4, 120 x 100 x 132 mm, aR, IEC, type K indicator
| General specifications | ||
| Product Name | Eaton Bussmann series high speed square body fuse | |
| Catalog Number | 170M7028 | |
| EAN | 5996516020913 | |
| UPC | 051712814362 | |
| Product Length/Depth | 67 mm | |
| Product Height | 120 mm | |
| Product Width | 130 mm | |
| Product Weight | 4750 g | |
| Compliances | Contact factory RoHS Compliant | |
| Model Code | FUSE 3000A 690V 4SBKN/60 AR | |
| Electrical data | ||
| Amperage Rating | 2500 A | |
| Voltage rating | 690 V | |
| Voltage type | AC | |
| Watt losses | 305 W | |
| Class | Class aR |
