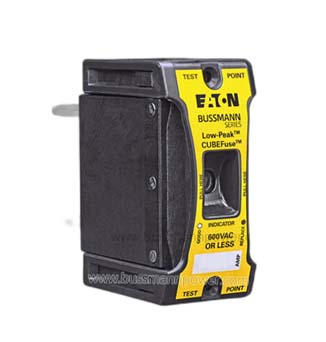

Eaton Bussmann TCF125 series TCF Time delay Class CF fuse

Eaton Bussmann TCF125 series TCF Time delay Class CF fuse

Manufacturer：Bussmann

Description :Eaton Bussmann series TCF fuse, 125 A, 60 Hz, 50 Hz, Dual, Class CF, Black, With Indicator, Blade end, Time delay,Class CF, 200 kAIC, Glass filled PES, Standard, 1, 600 V, TCFH200N, CCP2-3-200CF

Stock quantity(PCS) :

Lead time ( Weeks ) :12

Categories：Time delay fuse,series TCF fuses,indicating fuse,Class CF

Browse：
Chat Now
Inquiry now
  • Specification
  • Datasheet download

Bussmann Eaton TCF125 slow blow fuse


PRODUCT NAME
Eaton Bussmann series TCF fuse
CATALOG NUMBER
TCF125
UPC
051712697774
PRODUCT LENGTH/DEPTH
2.95 in
PRODUCT HEIGHT
3.63 in
PRODUCT WIDTH
1.32 in
PRODUCT WEIGHT
.39 lb
WARRANTY
No warranty
COMPLIANCES
RoHS Compliant
CERTIFICATIONS
UL Listed

ELECTRICAL RATING

AMPERAGE RATING
125 A
FREQUENCY RATING - MAX
60 Hz
FREQUENCY RATING - MIN
50 Hz
INTERRUPT RATING
200 kAIC
VOLTAGE RATING
600 V

GENERAL INFORMATION

CLASS
Class CF
CONNECTION
Blade end
FUSE INDICATOR
With Indicator
QUANTITY
1
SPECIAL FEATURES
Finger safe
USED WITH
TCFH200N, CCP2-3-200CF


Catalog Numbers (amp rating)

Indicating CUBEFuse
TCF6          TCF10TCF15TCF17-1/2TCF20TCF25
TCF30        TCF35TCF40TCF45TCF50TCF60
TCF70        TCF80TCF90TCF100

Non-Indicating CUBEFuse
TCF1RN     TCF3RNTCF6RNTCF10RNTCF15RNTCF17-1/2RN
TCF20RN  TCF25RNTCF30RNTCF35RNTCF40RNTCF45RN
TCF50RN  TCF60RNTCF70RNTCF80RNTCF90RNTCF100RN



Carton Quantity and Weight

Amp
Rating		Carton
Qty.		Weight Per Carton
lbskg
TCF1-30A121.390.63
TCF35-60A121.420.65
TCF70-100A61.740.79



TCF_ and TCF_RN Dimensions – in (mm)


Fuse
Amps		Dimensions - in (mm)
ABCDEFG
1-151.88
(47.75)		0.75
(19.05)		1.00
(25.40)		0.23
(5.84)		0.04
(1.02)		0.63
(15.93)		0.28
(7.11)
17 1⁄21.88
(47.75)		0.75)
(19.05)		1.00
(25.40)		0.31
(7.87)		0.04
(1.02)		0.63
(15.93)		0.28
(7.11)
201.88
(47.75)		0.75)
(19.05)		1.00
(25.40)		0.31
(7.87)		0.04
(1.02)		0.63
(15.93)		0.28
(7.11)
25-301.88
(47.75)		0.75
(19.05)		1.00
(25.40)		0.31
(7.87)		0.04
(1.02)		0.63
(15.93)		0.28
(7.11)
35-402.13
(54.10)		1.00
(25.40)		1.13
(28.58)		0.36
(9.10)		0.04
(1.02)		0.63
(15.93)		0.38
(9.65)
45-502.13
(54.10)		1.00
(25.40)		1.13
(28.58)		0.44
(11.13)		0.04
(1.02)		0.63
(15.93)		0.38
(9.65)
602.13
(54.10)		1.00
(25.40)		1.13
(28.58)		0.44
(11.13)		0.04
(1.02)		0.63
(15.93)		0.38
(9.65)
703.01
(76.45)		1.00
(25.40)		1.26
(32.00)		0.49
(12.45)		0.06
(1.60)		0.58
(14.78)		0.38
(9.65)
80-903.01
(76.45)		1.00
(25.40)		1.26
(32.00)		0.49
(12.45)		0.06
(1.60)		0.58
(14.78)		0.38
(9.65)
1003.01
(76.45)		1.00
(25.40)		1.26
(32.00)		0.57
(14.48)		0.06
(1.60)		0.58
(14.78)		0.38
(9.65)
