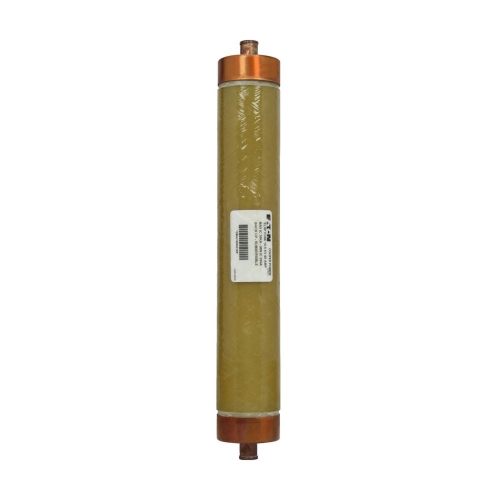

CBUC23150D100
Eaton Cooper Power series current limiting backup fuse, Under oil,
23 kV, 3.0 inch diameter, Distribution C, 150A, 50 kA max interrupt current, 700A min interrupt current, ELSP, 1/4-20 threaded hole both sides
GENERAL SPECIFICATIONS
PRODUCT NAME
Eaton Cooper Power series current limiting backup fuse
CATALOG NUMBER
CBUC23150D100
UPC
194006066495
PRODUCT HEIGHT
16.9 in
PRODUCT DIAMETER
2.1 in
PRODUCT WEIGHT
3.8 lb
COMPLIANCES
Not Applicable
CERTIFICATIONS
IEEE Std. C37.41
DESCRIPTION
CONNECTION
1/4 - 20 threaded hole both sides
INDICATORS
Without Indicator
ELECTRICAL RATINGS
AMPERAGE RATING
150 A
FUSE RATINGS
Distribution C
INTERRUPTING CURRENT - MAX
50 kA
INTERRUPTING CURRENT - MIN
700 A
INTERRUPTING CURRENT - MIN
700 A
VOLTAGE RATING
23 kV
MOUNTING
MOUNTING OPTION
Under oil
