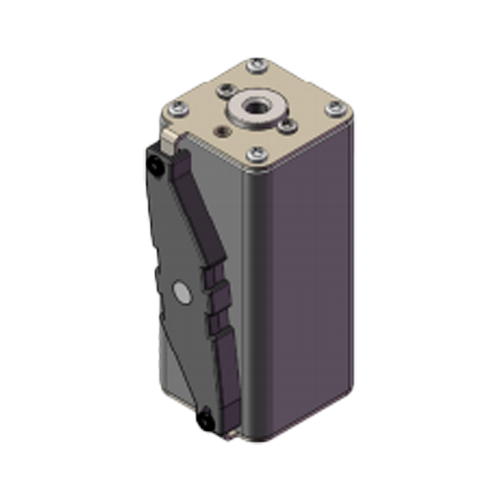

CBX2M20 Bussmann Fast Acting Fuse
| P/N | Rated Voltage Vac | Rated Current A | Pre-arcing integeral I2t | Max operating I2t at:1500Va.c | Losses at rated current W |
| CBX2M20-315 | 2000 | 315 | 38000 | 245000 | 80 |
| CBX2M20-350 | 2000 | 350 | 56000 | 360000 | 85 |
| CBX2M20-400 | 2000 | 400 | 85000 | 545000 | 90 |
| CBX2M20-450 | 2000 | 450 | 125000 | 800000 | 95 |
| CBX2M20-500 | 2000 | 500 | 185000 | 1250000 | 100 |
CBX2M20 Bussmann Fast Acting Fuse Dimension
