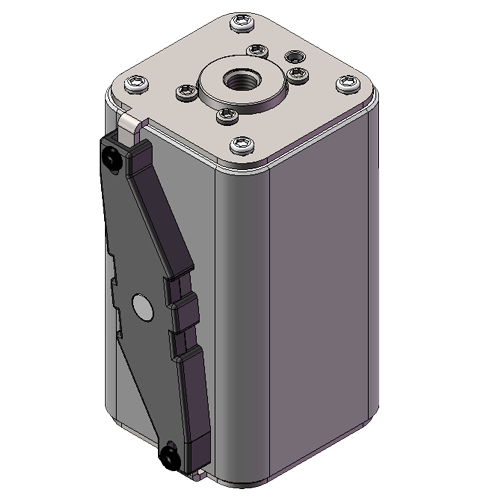

CBX3M20 Bussmann Fast Acting Fuse
| P/N | Rated Voltage Vac | Rated Current A | Pre-arcing integeral I2t | Max operating I2t at:1500Va.c | Losses at rated current W |
| CBX3M20-450 | 2000 | 450 | 63000 | 375000 | 135 |
| CBX3M20-500 | 2000 | 500 | 90000 | 530000 | 160 |
| CBX3M20-630 | 2000 | 630 | 220000 | 1300000 | 170 |
| CBX3M20-700 | 2000 | 700 | 350000 | 2100000 | 170 |
| CBX3M20-800 | 2000 | 800 | 555000 | 3250000 | 175 |
CBX3M20 Bussmann Fast Acting Fuse Dimension
